CENTRIFUGAL BARREL FINISHING

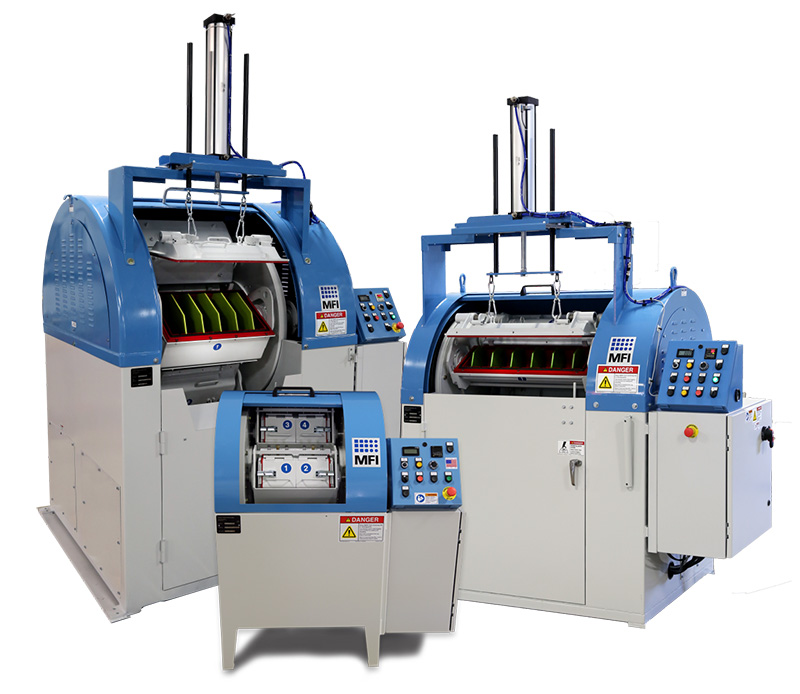

Centrifugal Barrel Machines

Features:

  • Variable speed drive for process flexibility
  • Four to eight removable barrels on 40 liter and smaller unit
  • Fixed barrels with barrel rotation motor on HZ-60 and larger unit
  • Two button turret jog requirement for safety
  • Safety interlocked doors during processing
  • Semi-automated cover removal system
  • ¼” Thick hot-poured, removable barrel liners
  • Eight standard size units available

Options:

For Increased Automation.

Allows parts to be separated from media for simple cleanup and to save down time.

Eliminates part-on-part contact.

Centrifugal Barrel Finishing (CBF) systems offer high-speed surface improvement. They feature four hexagon shaped barrels that rotate on a drum in a planetary motion at a one-to-one ratio.  From jet engine blades in the aerospace industry to heart valves and medical implants, these tumbling machines are versatile and money-saving solutions for polishing and deburring.

CBF systems are often referred to as high-energy solutions because they apply a force of 10–12g on media and parts. The system can use virtually any type of media and can both deburr and polish parts. Surface finishes of less than 1 Ra can be achieved. Barrels can also be divided to separate individual parts to eliminate impingement.

Model No.Working Capacity (Cu Ft.)Tank Capacity (Liters)Barrel SizeDrive HPOverall Dimensions (In)
HZ-12.42128.375″ L x 5″ Diam.134 x 30 x 55
HZ-401.44012.5″ L x 6.875″ Diam.347 x 38 x 49
HZ-6025625.75″ L x 5.875″ Diam.568 x 39 x 94
HZ-8538533.5″ L x 6″ Diam.775 x 39 x 94
HZ-1204.713317.25″ L x 10.25″ Diam.1071 x 57 x 75
HZ-1607.120020.75″ L x 12″ Diam.1589 x 40 x 90
HZ-220822727.5″ L x 11.5″ Diam.1581 x 57 x 75
HZ-33012.836242″ L x 12″ Diam.3090 x 56 x 80
