ROTARY CABINET WASHERS

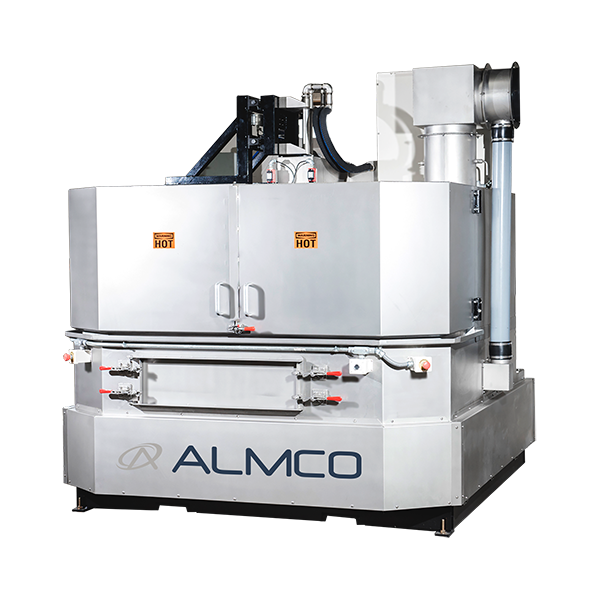

RCW Cabinet Washer

Features:

  • Heated wash tank
  • Float switch for heater protection
  • Standard 230V or 460V power source (380V or 575V optional)
  • Six standard turntable sizes from 18″ to 72″. Custom sizes available
  • Process timer for each wash cycle
  • Safety interlock switch on lid & doors
  • Rinse & blow-off stages may be added
  • Removable stainless-steel chip tray in wash
  • All stainless-steel construction
  • Variable speed, stainless steel turntable/platform
  • Vapor exhaust duct connections

Options:

  • Bag filter system
  • Stainless steel bag filtration units
  • Rinse and blow-off stages may be added
  • Oil skimmer or coalescer
  • Insulated wash and rinse tanks
  • Vapor exhaust system
  • Automatic water and compound replenishment
  • PLC and touch screen controls
  • UL 508A Electrical Controls: UL® 508A is an Underwriters Laboratories directive for components and wiring practices as they pertain to industrial control panels.

The RCW series features a front swing door that opens a full 180 degrees, allowing parts to be loaded by hand or via hoist onto a turntable. During the cycle the turntable rotates the part or basket to expose all sides to the spray and blow-off nozzles. These washers are versatile machines that can handle a wide variety of part sizes and shapes.  In addition, there are simple controls that allow for multiple wet and drying stages if needed.

Turntables Diameters (In)Standard Inside Cabinet Height (In)Standard Wash/Rinse (Gal)Wash/Rinse HPStandard Blow off HP
243050/502/15
303675/503/110
3650100/505/110
4250125/505/110
4850110/507.5/215
6050160/8010/215
7250220/11010/220
