These versatile parts washers are the perfect solution and can be incorporated into manufacturing work cells. These washers can be loaded by hand or automatically by using a robot or powered conveyor system.
The ALMCO ECW-series has one solution tank and one spray pump. The parts are placed directly or in baskets onto a turntable and rotate past a stationary spray pipe assembly. These are available for 230V, 380V, 460V or 575V power source.
The ALMCO RTW-Series comes in several standard sizes. These washers have a lift-up lid and parts are placed on a turntable or fixture from overhead. These machines have several options and can be equipped with a powered lid for automation with a robotic loading system. The standard units have a turntable and manual start button with timer to control the cycle.

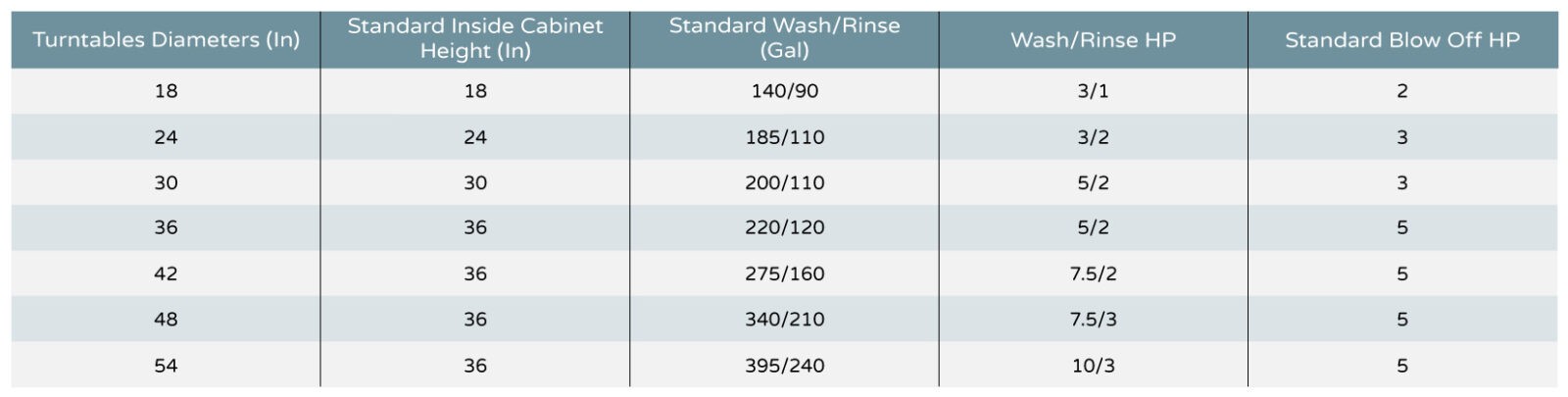

The ALMCO RPW-Series washers feature a front-loading system onto a turntable or platform. The part or parts basket is typically rolled or conveyed onto the turntable / platform from another conveyor or turntable. These units can be configured for pass-through operation if they are to be placed in a continuous feed work cell. These washers have powered, sliding doors that close once the part has been put in place to contain the spray. During the cycle the turntable rotates the part to expose all sides to the spray or blow-off nozzles. Some fixture-style units feature an oscillating platform for complete part coverage and most fixture-style RPW-Series machines have nozzles that align with critical part features to make sure those areas are properly cleaned. These machines are 100% custom designed and are available with wash, rinse and blow-off stages. There are many options available as well.

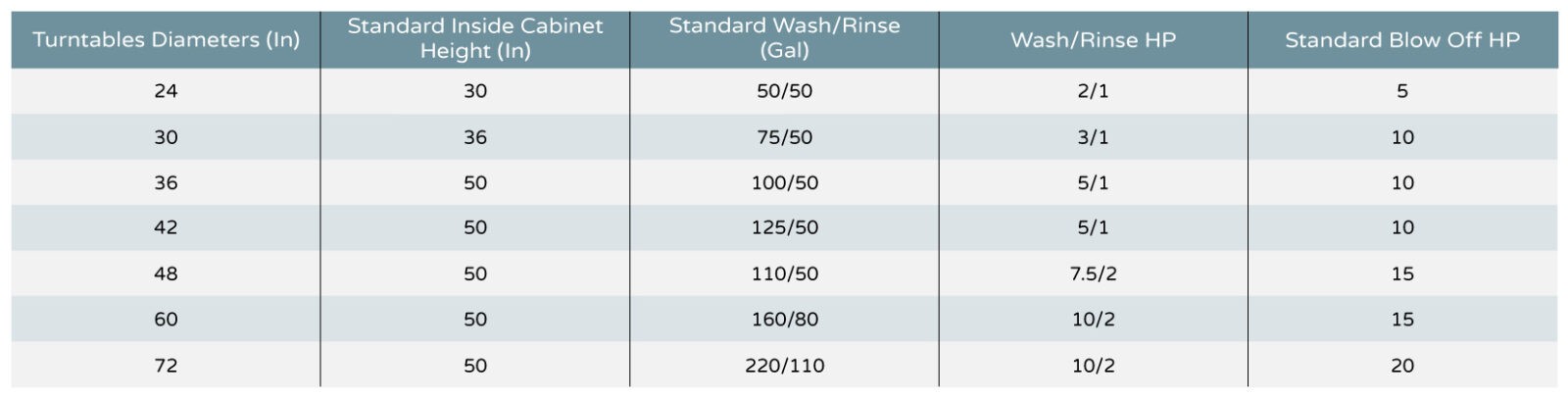

The ALMCO RCW-Series washers feature a front swing door that opens 180 degrees, allowing parts to be loaded by hand or via hoist onto a turntable. During the cycle the turntable rotates the part or basket to expose all sides to the spray or blow-off nozzles. The turntable is designed for the specific application and may have two or three levels. The front door is equipped with a safety switch to prevent operation of the pump(s) unless the door is closed. These machines are available in standard or custom designed sizes and are available with wash, rinse and blow-off stages. There are many options available as well such as filtration, oil separation and viewing window.
