INLINE WASHERS

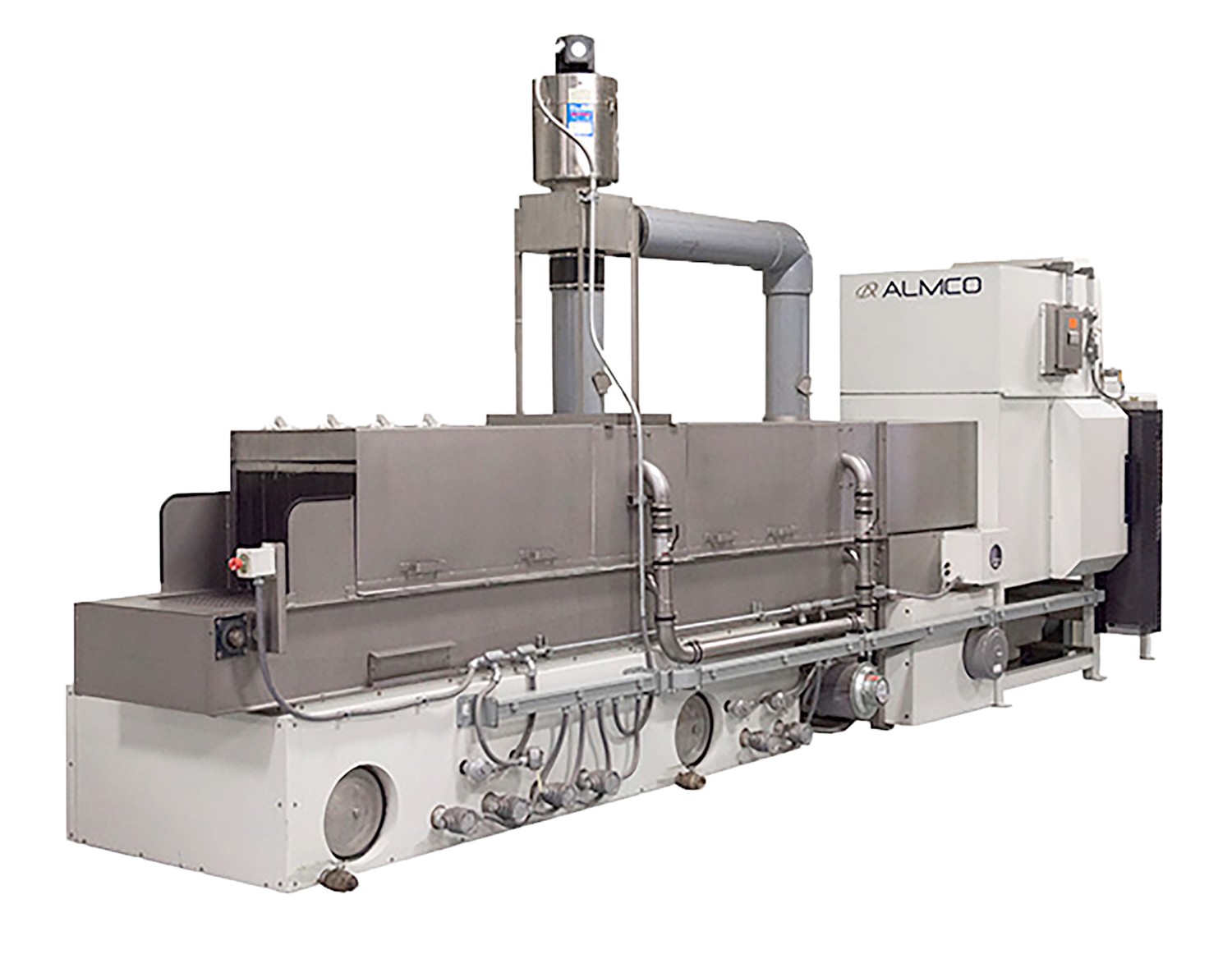

Inline Conveyor Washer

Features:

  • Multiple process stages configured for your application
  • Variable speed, stainless steel conveyance system
  • Removable stainless-steel chip tray in wash
  • Adjustable spray nozzles for 360-degree coverage
  • Heated wash and rinse tanks.

Options:

  • Insulated wash and rinse tanks
  • Vapor exhaust system
  • Stainless steel filtration units
  • Oil skimmer or coalescer
  • Large variety of belt materials and widths
  • Automatic water and compound replenishment
  • PLC and touch screen controls
  • UL 508A Electrical Controls: ULĀ® 508A is an Underwriters Laboratories directive for components and wiring practices as they pertain to industrial control panels.
  • Standard belt sizes: 12″, 18″, 24″. Custom sizes available.

Do you need the ability to clean high-volume parts and need that process to be multistage? Then the inline washer is for you. Inline washers provide continuous, flow-through operation with wash, rinse, and blow-off. Rust inhibit and drying sections are also available. The belt may be a standard flat wire belt, rod belt, mesh covered belt or chain drive for moving parts directly or onto pallets or tombstones.

Many belt styles and widths are available, and the machines can be 100% custom designed for your application.

Belt Width (In)Standard Working Tunnel Height (In)Standard Wash/Rinse (Gal)Wash/Rinse HPStandard Blow Off HP
63-6135/10525
94-9150/11525
124-12185/1253/210
186-15290/1453/210
246-18330/1655/310
3012-18370/1855/310
3612-18410/2055/315
4212-18450/2257.5/515
4812-18495/2457.5/515
5412-18535/2651010
6012-18575/2851010
