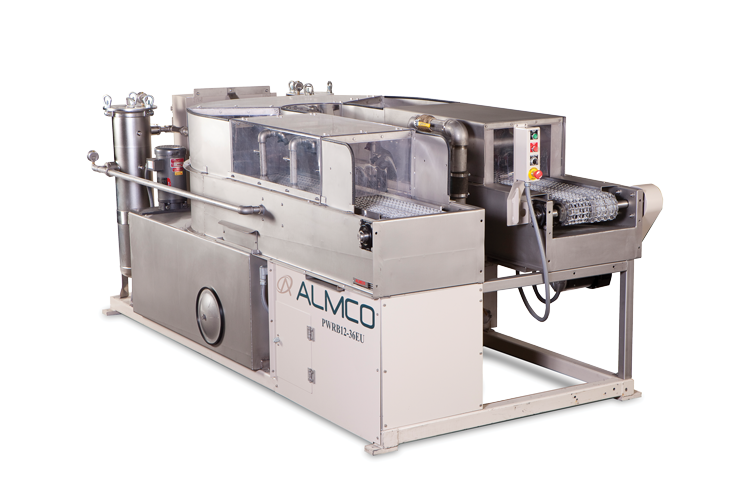

U-BEND WASHERS
Features:
- Multiple process stages configured for your application
- Variable speed, stainless steel conveyance system
- Removable stainless-steel chip tray in wash
- Adjustable spray nozzles for 360-degree coverage
- Heated wash and rinse tanks.
Options:
- Insulated wash and rinse tanks
- Vapor exhaust system
- Stainless steel filtration units
- Oil skimmer or coalescer
- Large variety of belt materials and widths
- Automatic water and compound replenishment
- PLC and touch screen controls
- UL 508A Electrical Controls: UL® 508A is an Underwriters Laboratories directive for components and wiring practices as they pertain to industrial control panels.
- Standard belt sizes: 12″, 18″, 24″. Custom sizes available.
Due to the design of U-bend washers, they are perfect for use with a single operator or in an automated system where the direction of workflow needs to be changed. These washers offer all the custom design benefits of our inline units, but with fewer belt options. Most units are built with a flat wire belt where the part is loose on top of the belt.
| Belt Width (In) | Standard Working Tunnel Height (In) | Standard Wash/Rinse (Gal) | Wash/Rinse HP | Standard Blow Off HP |
|---|---|---|---|---|
| 12 | 4-12 | 185/125 | 3/2 | 10 |
| 18 | 6-15 | 290/145 | 3/2 | 10 |
| 24 | 6-18 | 330/165 | 5/2 | 10 |
| 30 | 12-18 | 370/185 | 5/2 | 15 |
| 36 | 12-18 | 410/205 | 5/2 | 15 |
