PLASTIC MEDIA

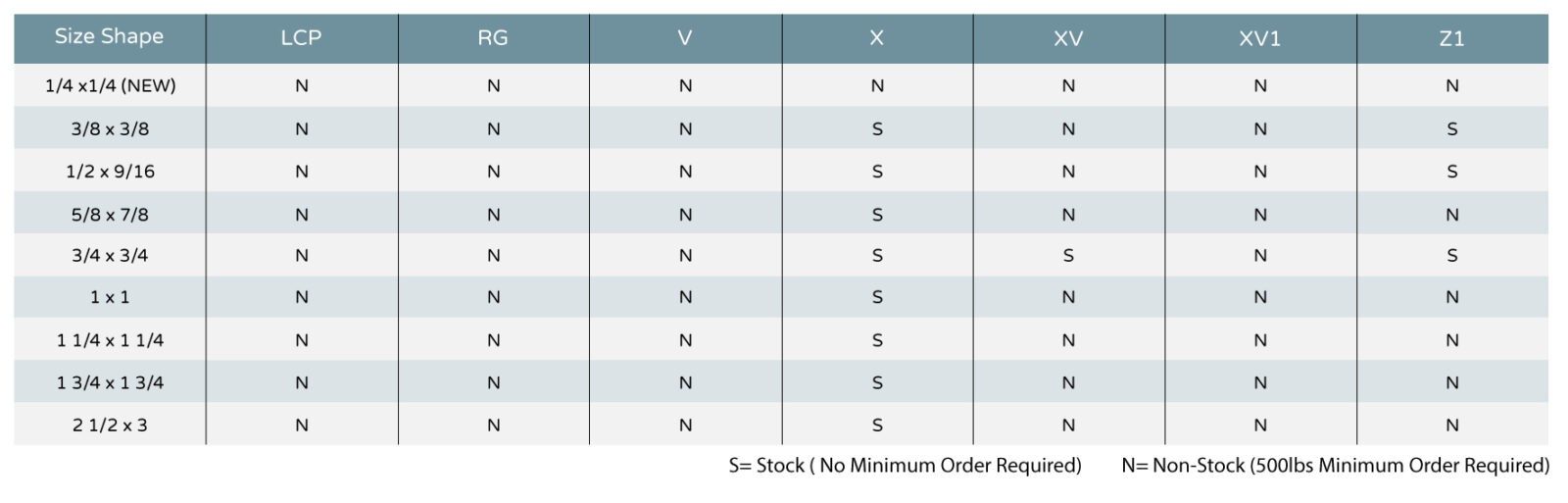

CONES: Cones are designed so they will easily separate from parts. Their unique shape enables them to reach into remote areas without lodging.
| SIZE SHAPE | LCP | RG | V | X | XV | XV1 | Z1 |
|---|---|---|---|---|---|---|---|
| 1/4 x1/4 (NEW) | • | • | • | • | • | • | • |
| 3/8 x 3/8 | • | • | • | S | • | • | S |
| 1/2 x 9/16 | • | • | • | S | • | • | S |
| 5/8 x 7/8 | • | • | • | S | • | • | • |
| 3/4 x 3/4 | • | • | • | S | S | • | S |
| 1 x 1 | • | • | • | S | • | • | • |
| 1 1/4 x 1 1/4 | • | • | • | S | • | • | • |
| 1 3/4 x 1 3/4 | • | • | • | S | • | • | • |
| 2 1/2 x 3 | • | • | • | S | • | • | • |
S = Stock (No Minimum Order Required)
• = Non-Stock (500lbs Minimum Order Required

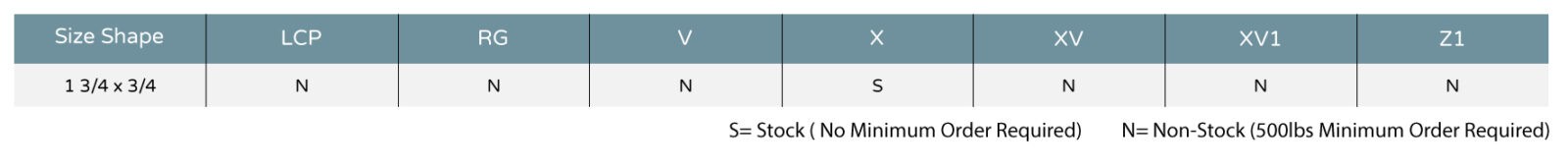

TRISTAR: Tristar’s may replace three or more sizes of other perform media and provide for a wide variety of parts from simple to intricate shapes.
| SIZE SHAPE | LCP | RG | V | X | XV | XV1 | Z1 |
|---|---|---|---|---|---|---|---|
| 1 3/4 x 3/4 | • | • | • | S | • | • | • |
S = Stock (No Minimum Order Required)
• = Non-Stock (500lbs Minimum Order Required
CYLINDRICAL WEDGES: The Cylindrical Wedges are one of our most versatile media products. They combine the excellent surface finish of a cylinder, while the large flat sides provide maximum cutting area.
| SIZE SHAPE | LCP | RG | V | X | XV | XV1 | Z1 |
|---|---|---|---|---|---|---|---|
| 1 3/4 x 3/4 | • | • | • | • | • | • | • |
| 3/4 3/4 | • | • | • | • | • | • | • |
| 1 1/2 x 1 1/2 | • | • | • | • | • | • | • |
S = Stock (No Minimum Order Required)
• = Non-Stock (500lbs Minimum Order Required

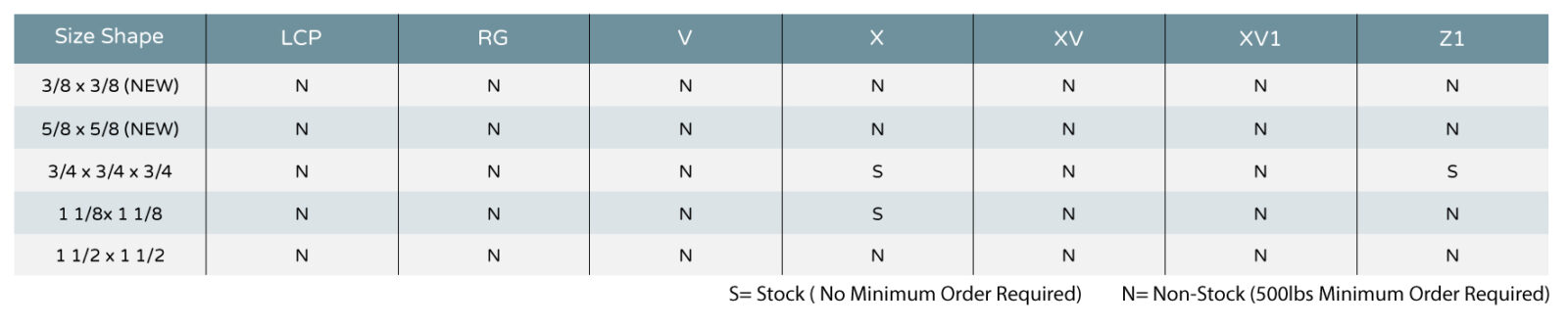

TETRAHEDRON: The Tetrahedron flat sides provide the best in cutting surfaces and are designed to reach into holes and slots without lodging. They react well in vibratory and have extremely good orbital action in round bowls.
| SIZE SHAPE | LCP | RG | V | X | XV | XV1 | Z1 |
|---|---|---|---|---|---|---|---|
| 3/8 X 3/8 (NEW) | • | • | • | • | • | • | • |
| 5/8 X 5/8 (NEW) | • | • | • | • | • | • | • |
| 3/4 X 3/4 X 3/4 | • | • | • | S | • | • | S |
| 1 1/8 X 1 1/8 | • | • | • | S | • | • | • |
| 1 1/2 x 1 1/2 | • | • | • | • | • | • | • |
S = Stock (No Minimum Order Required)
• = Non-Stock (500lbs Minimum Order Required

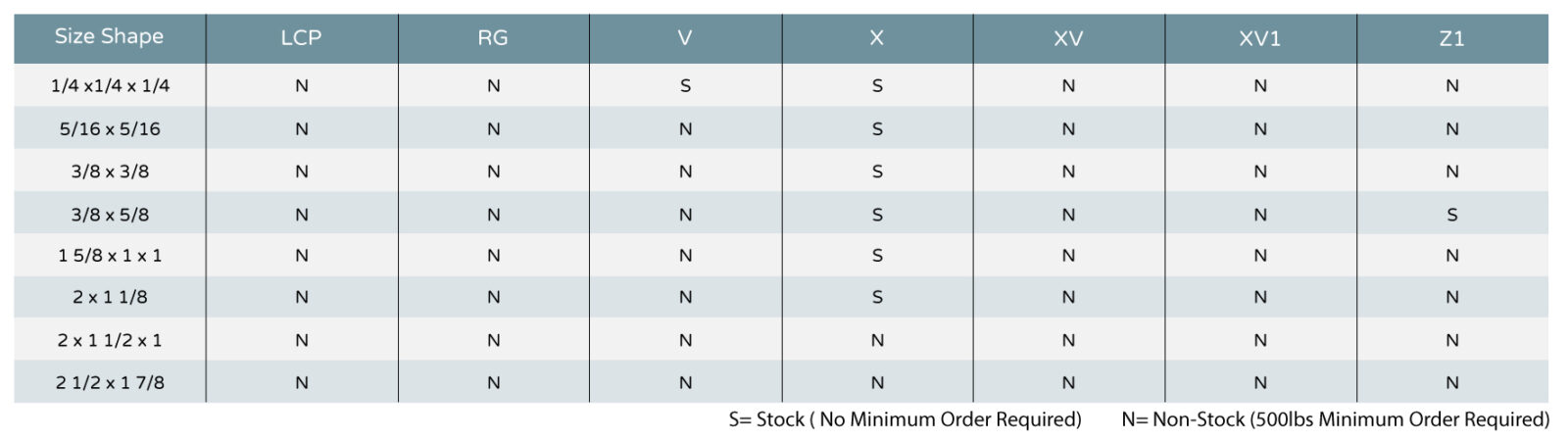

PYRAMID: The Pyramid flat sides provide the best in cutting surfaces and are designed to reach into holes and slots without lodging. They react well in vibratory and have extremely good orbital action in round bowls.
| SIZE SHAPE | LCP | RG | V | X | XV | XV1 | Z1 |
|---|---|---|---|---|---|---|---|
| 1/4 x 1/4 x 1/4 | • | • | S | S | • | • | • |
| 5/16 x 5/16 | • | • | • | S | • | • | • |
| 3/8 x 3/8 | • | • | • | S | • | • | • |
| 3/8 x 5/8 | • | • | • | S | • | • | S |
| 1 5/8 x 1 x 1 | • | • | • | S | • | • | • |
| 2 x 1 1/8 | • | • | • | S | • | • | • |
| 2 x 1 1/2 x 1 | • | • | • | • | • | • | • |
| 2 1/2 x 1 7/8 | • | • | • | • | • | • | • |
S = Stock (No Minimum Order Required)
• = Non-Stock (500lbs Minimum Order Required

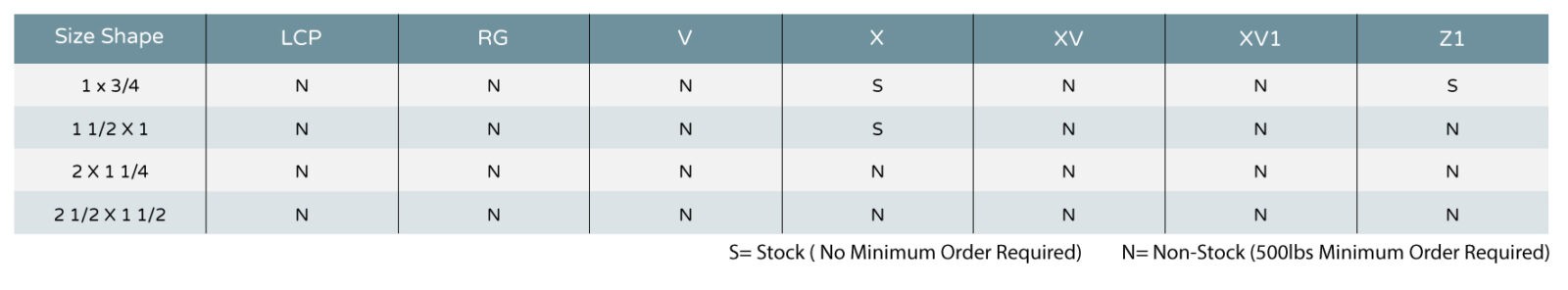

WEDGE (BOWTIE): Wedges are one of our most versatile media products. They combine the excellent surface finish of a cylinder, while the large flat sides provide maximum cutting area.
| SIZE SHAPE | LCP | RG | V | X | XV | XV1 | Z1 |
|---|---|---|---|---|---|---|---|
| 1 3/4 | • | • | • | S | • | • | S |
| 1 1/2 X 1 | • | • | • | S | • | • | • |
| 2 X 1 1/4 | • | • | • | • | • | • | • |
| 2 1/2 X 1 1/2 | • | • | • | • | • | • | • |
S = Stock (No Minimum Order Required)
• = Non-Stock (500lbs Minimum Order Required
TRIANGLES: Triangles reach into remote areas not accessible to regular square cut media. It is a very efficient media that retains its basic shape.
| SIZE SHAPE | LCP | RG | V | X | XV | XV1 | Z1 |
|---|---|---|---|---|---|---|---|
| 1/4 x 1/4 x 1/4 | • | • | • | S | • | • | • |
| 5/16 x 5/16 | • | • | • | S | • | • | • |
S = Stock (No Minimum Order Required)
• = Non-Stock (500lbs Minimum Order Required
