How It Works

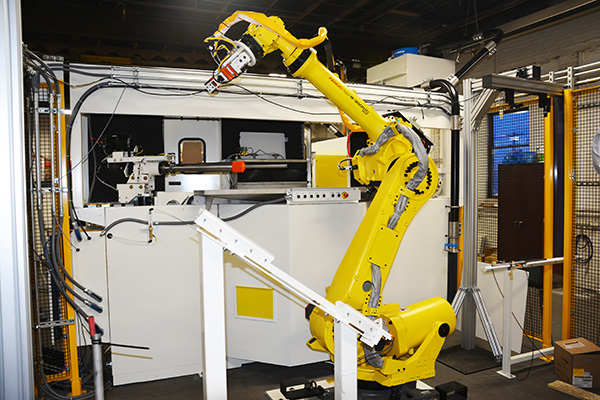

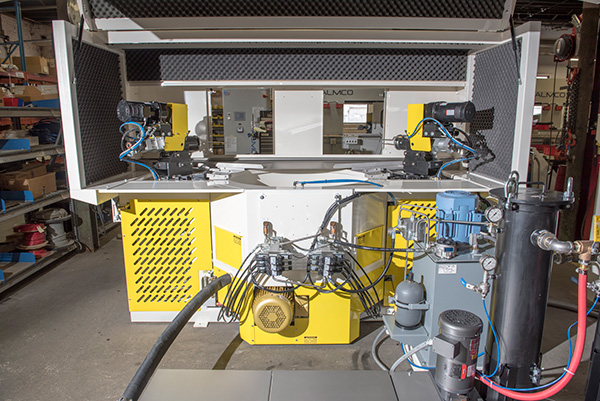

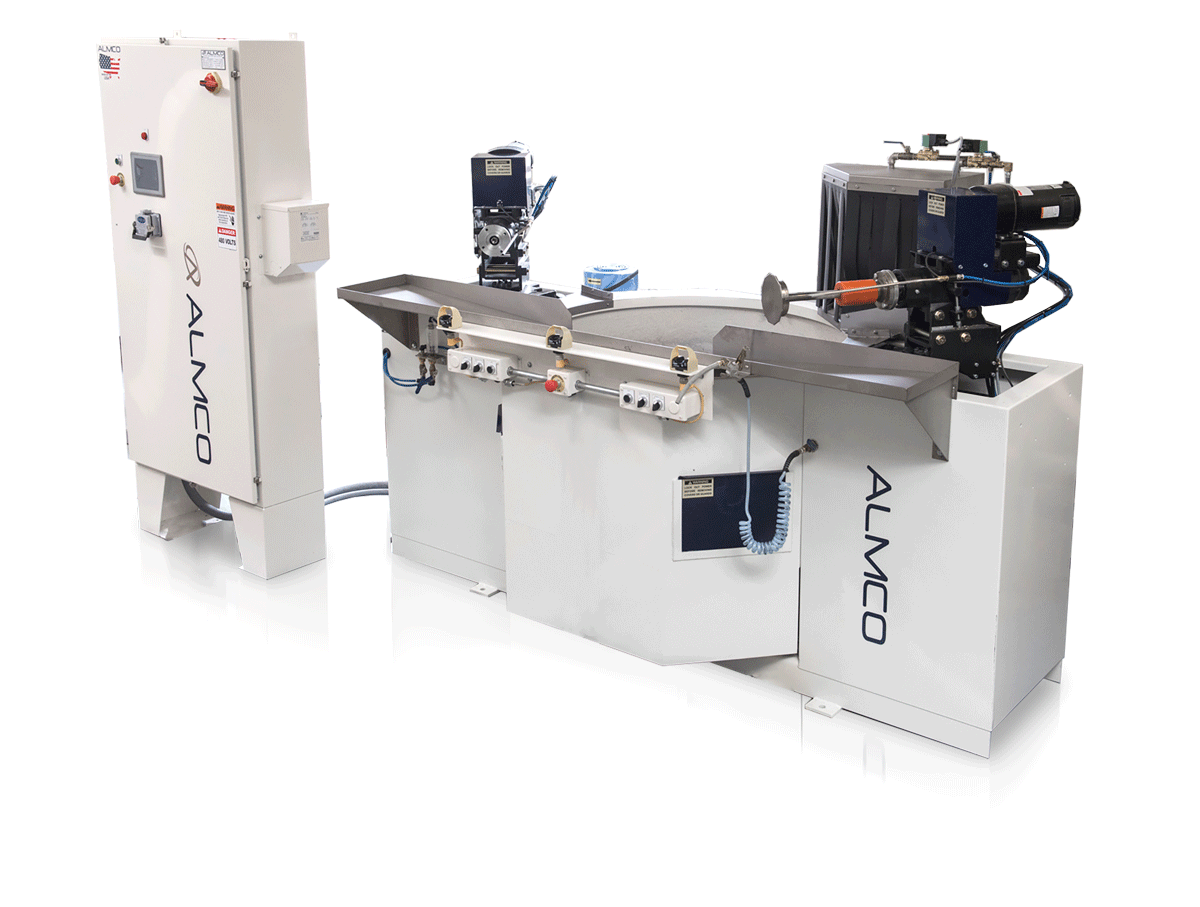

In Spindle Finishing Machines, the part is typically attached to the spindle via a custom fixture that holds the parts during the finishing process. Parts may be loaded by hand or via robot. Once the parts are attached to the fixture/tooling, they are lowered into a tub of rapidly moving abrasive media.

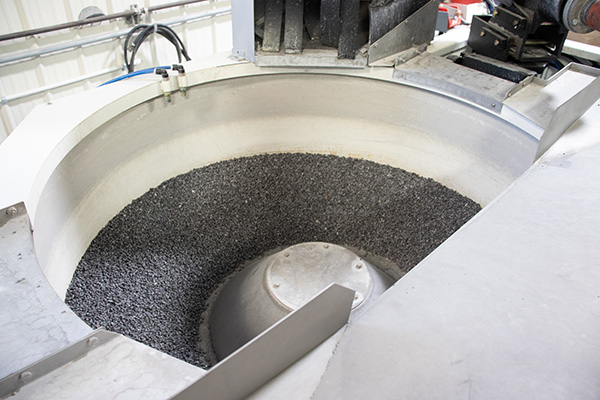

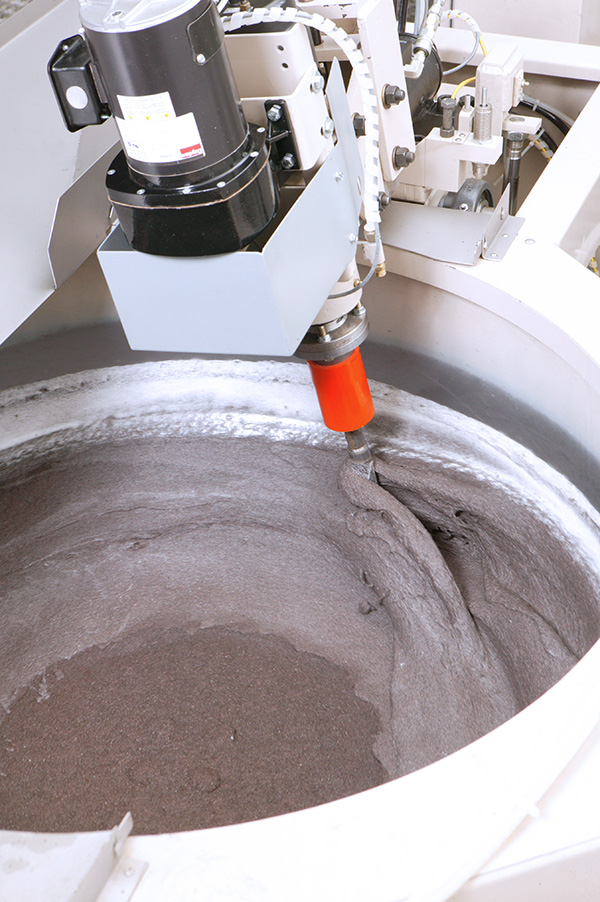

The tub rotates in one direction, while the spindle(s) typically turn in the opposite direction. When the spindle rotates, it exposes all sides of the parts to the abrasive media or slurry, resulting in consistent deburring and finishing.

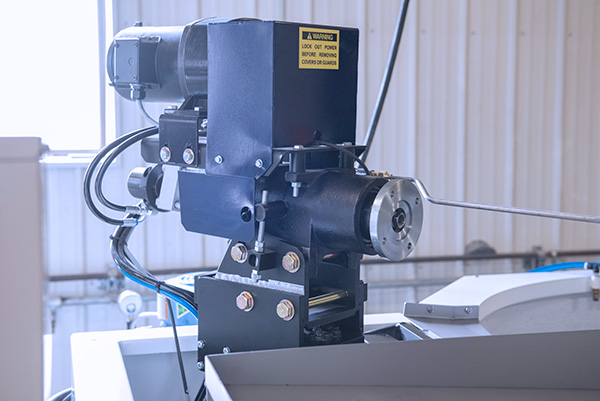

On a machine equipped with the Rotary Actuator (RA) feature, the spindle will pivot in two different directions within the tub, allowing multiple position angles to achieve uniform coverage of all part surfaces without having to manually remove the part from the spindle.
The movement of the tub and spindle(s) create a more consistent finish in a shorter cycle time than most other finishing processes.
- Repeatable load and process positions allow for easy integration with robotic production lines
- Spring-hold air-release tooling holds part to spindle
- Variable speed tub featuring a perforated drain section for the removal of liquid sludge from the media
- Spindle orientation

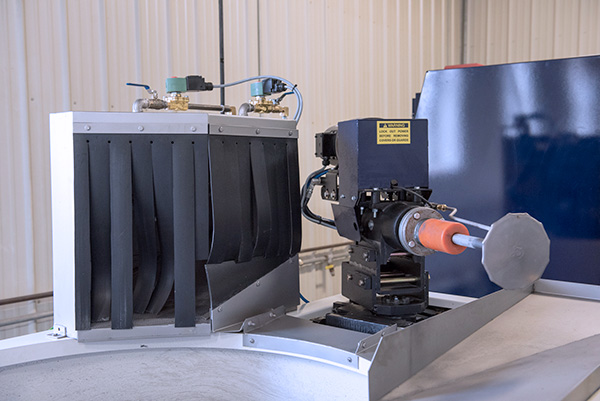

- Spindle flush stations
- Safety enclosure
- Rotary Actuator (RA) Feature for easier
load/unloading of parts
- Hydraulically-actuated tooling
- UL 508A electrical controls
|Model No.||# of Spindles||Tub Diameter (In)||Maximum Part Diameter (In)||Max Tub Speed (SFM)||Tub Drive (HP)||Overall Dimensions (In)|
|S2-30||2||30||2.5||2000||5||55 x 38 x 55|
|S2F-36||2||36||6||1000||7.5||112 x 56 x 65|
|S2F-48||2||48||16||900||10||120 x 64 x 65|

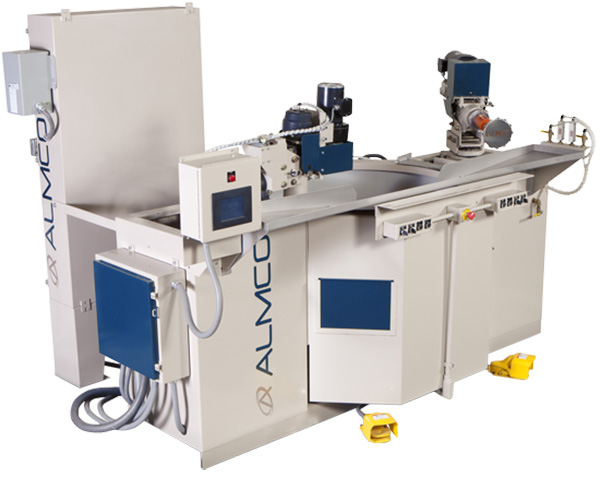

|S2F-48CRA||2||48||16||900||10||120 x 75 x 65|
|S2F-48DRA||2||48||8.5||900||20||120 x 75 x 75|
|1SF-48||1||48||30||900||15||92 x 123 x 93|

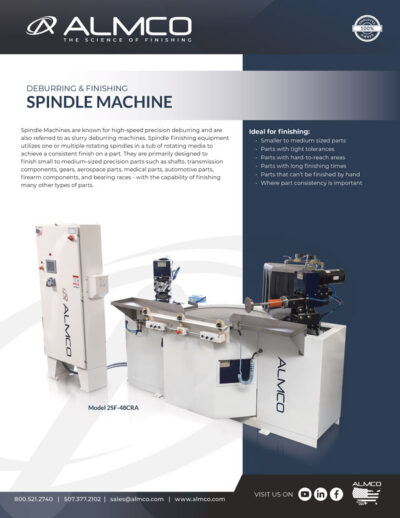

Spindle Machine Sell Sheet
