Vibratory Finishing Bowls: Round Bowl Machines for Deburring, Polishing, and High-Volume Parts Finishing
ALMCO’s vibratory finishing bowls are designed for precise, repeatable deburring, edge radiusing, surface smoothing, and polishing of small- to mid-size manufactured parts. The round bowl design creates a continuous toroidal flow pattern—parts and media travel around the curved channel, generating millions of controlled micro-collisions that produce uniform results across every part in the batch. Whether you’re processing machined components, stampings, castings, or medical device parts, an ALMCO vibratory bowl finisher delivers consistent surface quality with significantly less labor than hand finishing.
Available in four series—from compact, economical units to heavy-duty industrial bowl finishers with automation integration—ALMCO vibratory finishing bowls fit a wide range of production volumes and part types. Every bowl polishing machine we build features a curved, polyurethane-lined processing chamber, variable-speed motor, and wet or dry processing capability. Our on-site process lab can run your actual parts on production-grade vibratory bowl finishers at no charge, helping you select the right bowl size, media, and compound combination before you invest in equipment.
What You Need to Know Before Buying Any Industrial Finishing Equipment
Selecting the right industrial parts finishing equipment can be a complicated process. Explore the finishing options available with the industry with our white paper: What You Need To Know Before Buying Any Industrial Parts Finishing Equipment.
ALMCO Vibratory Bowl Finisher Models

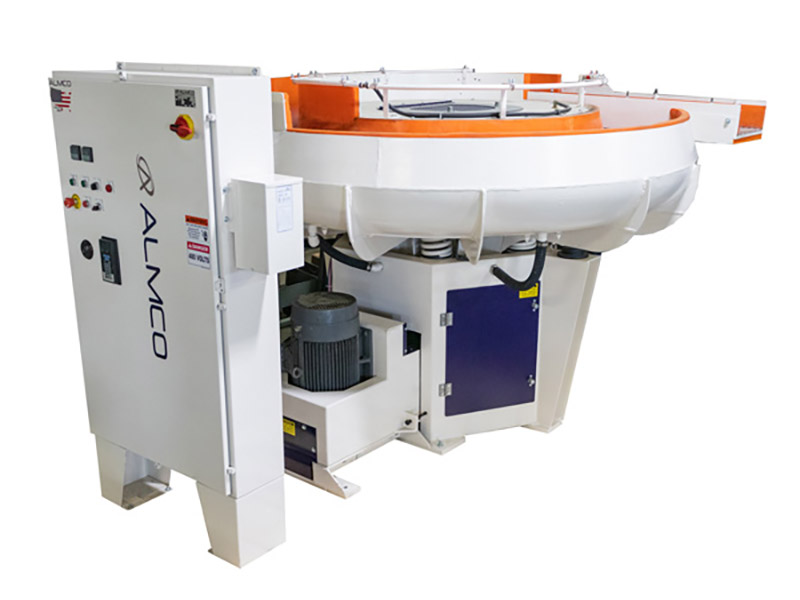

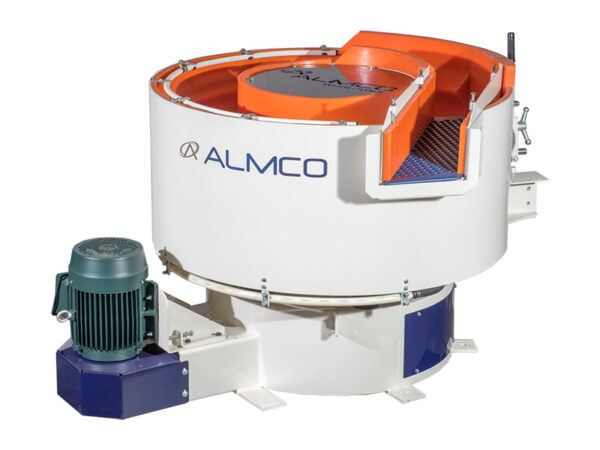

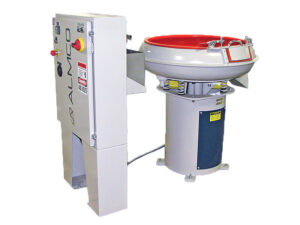

| Feature | SBB Series | LR Series | OR Series | AB Series |
| Bowl Design | Spiral bottom, helical chamber | Long radius, small cross-section | Flat bottom, standard | Semi-flat, U-shaped channel |
| Processing Mode | Batch | Batch or Thru-Feed | Batch | Batch or Thru-Feed |
| Discharge | Internal screening + air door | Internal screening + air door | External screener | Internal separation |
| Divider Capable | No | No | Yes (only series) | No |
| Automation | Full (PLC, system integration) | Full (air door, conveyors) | Air-operated door option | Manual operation |
| Volume Fit | Mid to High | Mid to High | Mid to High | Low to Mid |
Why Choose a Vibratory Finishing Bowl Over a Tub?
Vibratory finishing bowls and vibratory tubs both belong to the mass finishing family, but they serve different production needs. Round bowl machines are typically the better choice when you’re processing smaller parts in batch mode, need a compact footprint, or want integrated parts-media separation built into the machine. The curved bowl channel also tends to produce more gentle, uniform finishing action than a straight tub—making vibratory bowl finishers the preferred platform for polishing, burnishing, and finishing delicate or cosmetically sensitive parts. For larger parts, long workpieces, or continuous thru-feed processing, explore our vibratory tub finishing equipment.
How Vibratory Bowl Finishing Works
In a vibratory finishing bowl, parts and abrasive or polishing media are loaded together into a round, polyurethane-lined processing channel. A motor-driven vibrator assembly generates rapid oscillation, causing the entire mass of parts and media to flow in a continuous toroidal pattern around the bowl. As the media tumbles against part surfaces, millions of small controlled collisions remove burrs, radius edges, smooth surfaces, and produce uniform finishes. A mixture of water and finishing compound washes away removed material and keeps the process clean.
Process Tuning and Flexibility
Every ALMCO vibratory bowl finisher features a variable-speed motor, allowing engineers to adjust the intensity of the finishing action to match the application. Higher speeds produce more aggressive media contact for heavy burr removal, while lower speeds deliver gentler action suited for polishing, burnishing, and processing delicate parts. The finishing outcome is further controlled by selecting the right media type—ceramic for aggressive cutting, plastic for lighter deburring and surface smoothing, or steel for burnishing and brightening—along with the appropriate compound chemistry for the part material.
Parts-Media Separation
Efficient separation of finished parts from media is critical to production flow. ALMCO vibratory finishing bowls use two separation approaches depending on the series: internal screening (SBB, LR, and AB Series) where parts are discharged over a built-in screen that returns media to the bowl, and external screening (OR Series) where the entire batch is discharged onto a separate oscillating screener. Both methods ensure clean part discharge with minimal media loss. Machines equipped with air-operated discharge doors can be integrated into automated production cells for hands-off operation.
Common Applications for Industrial Bowl Finishers
- Deburring machined, stamped, die-cast, and forged components
- Edge radiusing and chamfering to meet drawing specifications
- Surface smoothing and Ra value improvement before coating, plating, or painting
- Polishing and burnishing to achieve bright, uniform cosmetic finishes
- Pre-plate surface preparation for automotive, electronics, and medical parts
- Cleaning and descaling castings and heat-treated components
- Processing delicate parts with dividers to prevent part-on-part contact (OR Series)
Why Engineers Specify ALMCO Vibratory Bowl Finishers
- Four Bowl Platforms, One Manufacturer: ALMCO offers a wider range of vibratory finishing bowl designs than most competitors—spiral bottom, long radius, flat bottom with dividers, and compact economy—all built under one roof. This means your engineering team can evaluate and specify the right bowl geometry for each application from a single, proven source.
- Integrated System Capability: ALMCO vibratory bowl finishers can be seamlessly integrated with parts loaders, inline conveyor washers, vibratory dryers, and material handling equipment to create complete finishing systems. Our SBB Series, for example, has been deployed in automated cells handling thousands of parts per day with minimal operator intervention.
- Free Process Lab Trials: Ship your parts to our process lab in Albert Lea, Minnesota. Our engineers will test them on production-grade vibratory finishing bowls and return your parts with a detailed lab report—including recommended machine, media, compound, and cycle time—within two weeks, at no charge.
- Finishing + Washing from One Source: Because ALMCO manufactures both vibratory finishing bowls and industrial parts washers, we can engineer connected production cells that deburr, finish, wash, and dry parts in a single streamlined workflow—reducing handling, vendors, and floor space.
- Built in the USA for Long-Term Production: Heavy-gauge steel frames, thick polyurethane bowl linings, precision-balanced vibrator assemblies, and industrial-grade drives are standard on every ALMCO bowl polishing machine. Service, parts, and technical support come directly from our Minnesota facility.
