Part Washing Equipment

Rotary Cabinet Parts Washers

Flexible Batch Cleaning for Industrial Manufacturing

ALMCO Rotary Cabinet Parts Washers provide reliable, automated cleaning for manufacturers processing individual parts, baskets, fixtures, assemblies, and heavy components. Designed for wash, rinse, blow-off, and drying applications, these systems utilize a rotating turntable and strategically positioned spray nozzles to deliver consistent cleaning performance while minimizing operator involvement.

Available in compact top-load and larger front-load configurations, ALMCO cabinet washers are ideal for removing oils, chips, coolants, particulate, and manufacturing residue from a wide variety of components used in aerospace, automotive, defense, machining, and industrial manufacturing environments.

Get Quote

Download Brochure

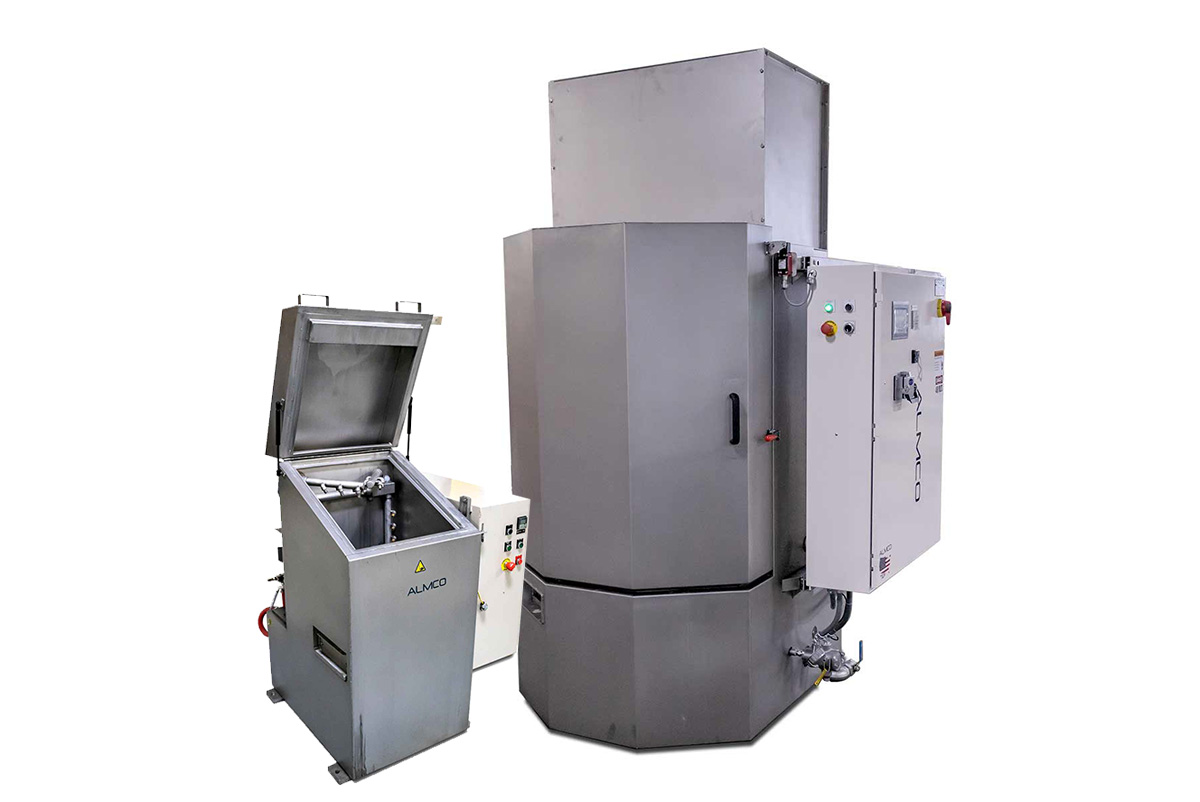

MODEL COMPARISON

COMPARE AVAILABLE MODELS

All Cabinet Washers

RCW-24E Rotary Cabinet Washer

Flexible front-load cabinet washer offering premium cleaning performance and process configurability.

500 lb turntable capacity
Heated wash and rinse tanks
Multiple process-stage options

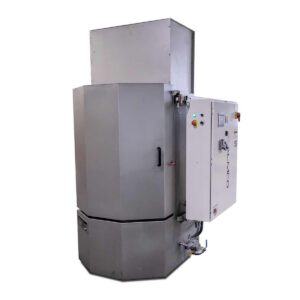

RCW-36E Rotary Cabinet Washer

Large-capacity cabinet washer designed for oversized parts and demanding industrial cleaning applications.

1,000 lb turntable capacity
High-flow spray system
Handles large assemblies and components

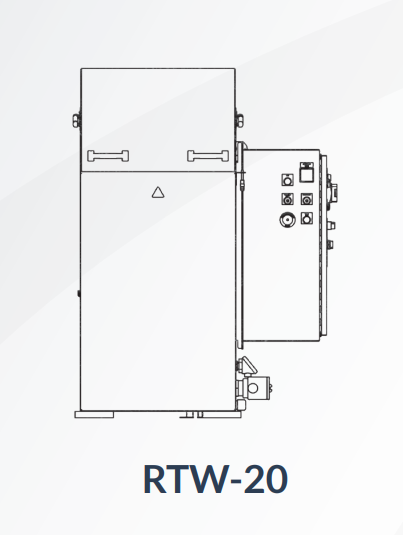

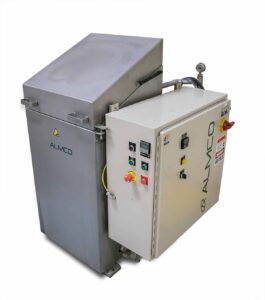

RTW-20E Rotary Top-Load Washer

Compact top-load rotary parts washer ideal for smaller components and manufacturing cells.

Space-saving footprint
100 lb turntable capacity
Easy top-loading design

Thorough 360° Cleaning- Rotating turntables continuously expose all surfaces to the cleaning solution for consistent cleaning coverage.
Handles a Wide Variety of Parts- Capable of processing machined components, castings, fabricated assemblies, fixtures, and production hardware.
Simple Batch Operation- Load, wash, unload. Rotary cabinet washers provide a straightforward cleaning process that supports both job-shop and production environments.
Flexible Process Configurations- Available with wash, rinse, blow-off, drying, filtration, and fluid-management options to meet specific cleanliness requirements.
Built for Industrial Use- Heavy-duty construction, stainless steel tanks, and industrial controls are designed for long-term reliability.

COMMON APPLICATIONS

Machined Components- Remove coolants, chips, cutting oils, and machining residue.
Aerospace Components- Clean precision-manufactured parts prior to assembly, coating, or inspection.
Automotive Parts- Prepare components for assembly and downstream manufacturing processes.
Castings & Forgings- Remove residual manufacturing contaminants and debris.
Fabricated Assemblies- Clean weldments, brackets, housings, and structural components.
Maintenance & Repair Operations- Degrease and clean parts during refurbishment and maintenance activities.

Get Quote

Download Brochure

Vibratory Finishing Equipment

RCW Rotary Cabinet Washer Model Comparison

Model	RTW-20E	RCW-24E	RCW-36E
Loading Type	Top	Front	Front
Overall Machine Dimensions (Approximate)	Length 47″ x Width 40″ x Height 57″	Length 42″ x Width 45″ x Height 104″	Length 65″ x Width 60″ x Height 78″
Turntable Capacity	100 lbs.	500 pounds	1000 pounds
Turntable Diameter (In)	20	24	36
Inside Cabinet Height (In)	17	30	50
Turntable Load Height (In)	17	34.5	34.5
Wash Tank Capacity (Gal)	45	60	100
Rinse Tank Capacity (Gal)	N/A	50	50
Wash Pump	2 HP, 3450 RPM motor	2 HP, 3450 RPM motor	5 HP, 3450 RPM motor
Wash Flow Rate	40 GPM @ 35 PSI	60 GPM @ 40 PSI	80 GPM @ 45 PSI
Rinse Pump HP	N/A	1 HP, 3450 RPM motor	1 HP, 3450 RPM motor
Rinse Flow Rate	N/A	40 GPM @ 28 PSI	40 GPM @ 28 PSI
Drain Fitting	1-1/2″ with shut-off valve	1-1/2″ with shut-off valve	1-1/2″ with shut-off valve
Turntable Drive	1/4 HP 90 Volt DC gearmotor	1/4 HP 90 Volt DC gearmotor	1/4 HP 90 Volt DC gearmotor
Turntable Speed	6 RPM	3 RPM	3 RPM
Electric Heated Wash/Rinse	12 kW screw-plug immersion heaters	12 kW screw-plug immersion heaters	12 kW screw-plug immersion heaters
Tank Heating Time	70 to 140 degrees (F) in 1 hour	70 to 140 degrees (F) in 1 hour	70 to 140 degrees (F) in 1 hour
Tank Insulation	1″ thick layer of fiberglass	2″ thick fiberglass batting with SS jacket	2″ thick fiberglass batting with SS jacket
Machine Construction	304 stainless steel	304 stainless steel	304 stainless steel
Power Requirement	460v (Others Available) 3 Phase, 60 Cycle	460v (Others Available) 3 Phase, 60 Cycle	460v (Others Available) 3 Phase, 60 Cycle
Drive Unit	AC Variable Frequency	AC Variable Frequency	AC Variable Frequency
Operator Controls	110 volts supplied by a transformer within the control box	110 volts supplied by a transformer within the control box	110 volts supplied by a transformer within the control box
Electrical Controls	Conformance to NEC (NFPA 70) and NFPA 79 electrical standards	Conformance to NEC (NFPA 70) and NFPA 79 electrical standards	Conformance to NEC (NFPA 70) and NFPA 79 electrical standards
Electrical Enclosure	NEMA Type 12 panel enclosure mounted on the machine	NEMA Type 12 panel enclosure mounted on the machine	NEMA Type 12 panel enclosure mounted on the machine
UL® 508A Electrical Panel Certification	Available for additional cost	Available for additional cost	Available for additional cost
Paint	Two coats of Diamond Vogel brand industrial enamel in Lunar White with Midnight Blue accent	Two coats of Diamond Vogel brand industrial enamel in Lunar White with Midnight Blue accent	Two coats of Diamond Vogel brand industrial enamel in Lunar White with Midnight Blue accent

SYSTEM DETAILS

Wash Cabinet

Design of the machine consists of a cabinet that houses the Washer’s turntable and spray system. The cabinet is mounted on top of the wash tank, and this cabinet/tank weldment forms the main structure of the machine.

The cabinet is fabricated from 12 gauge 304 stainless steel sheets and structural reinforcing members using all-welded construction to provide a water-tight, first-rate appearance. The interior of the cabinet includes a sloped pan bottom used to direct sprayed wash solution through a removable stainless steel chip tray before return to the wash tank.

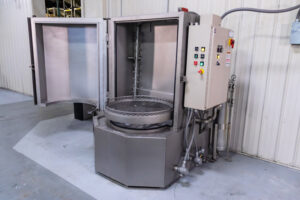

Access by the machine operator to the “work area” inside the cabinet is gained by opening a hinged door on the front of the machine. The bottom of this 12-gauge 304 stainless steel door includes a small trough that directs collected wash solution back to the cabinet to prevent liquid from getting on the floor while the door is open. The door also includes a manually-operated latch and a safety limit switch that disables the pumps if the door is opened during a cleaning cycle.

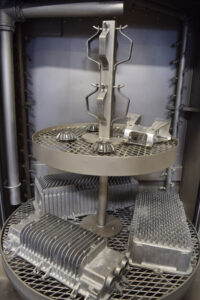

Turntable

The turntable weldment is fabricated from 304 stainless steel and is supported by tapered roller bearings that are mounted within a stainless steel spindle and hub assembly. The center of the turntable bolts to the top of the spindle/hub assembly and includes a metal deck suitable for placing basket of parts to be cleaned.

The turntable is friction driven by a 1/4 HP 90 Volt DC gearmotor located outside of the cabinet on the back of the machine. A horizontally-mounted rubber wheel mounted to the gearbox output shaft extends into the cabinet and drives the turntable on its perimeter. During the automatic washing sequence, the turntable rotates at approximately 3 RPM while the machine runs through its timed cleaning cycle.

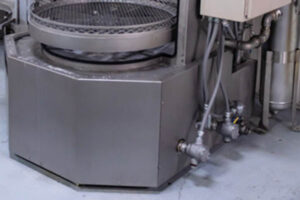

Wash Tank

The solution tank of the Washer has a capacity of approximately 100 gallons and is fabricated from stainless steel and structural reinforcing members using all-welded construction. The tank is located beneath the wash cabinet, and along with the cabinet forms the main structure of the machine. Floor pads on the underside of the tank allow the entire machine to be picked up and moved via forklift, and the tank is approximately 9″ wider than the cabinet along back of the machine providing open tank area for mounting the top-pull-out wash pump. The tank also includes a sloped bottom that runs to a sump area, and a 1-1/2″ drain fitting.

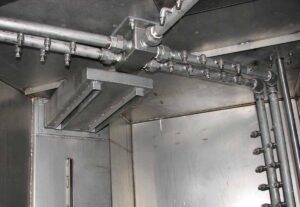

Spray System

The wash pump is a Gusher brand vertical, end-suction, centrifugal unit with cast iron housing and impeller, complete with a 5 HP, 3450 RPM motor. The pump is capable of delivering solution to the spray system at a rate of up to 80 GPM @ 45 PSI.

The Washer’s spray system consists of a stainless steel header pipe assembly that has tapped holes to accept Spraying Systems brand “V-Jet” spray nozzles made of stainless steel. The headers are arranged to provide top, bottom, and side spray within the wash cabinet.

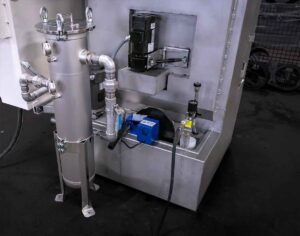

Rinse System

The rinse tank has a capacity of 50 gallons and is fabricated from 12 gauge 304 stainless steel and structural reinforcing members using all-welded construction. The free-standing tank is located alongside the machine (next to the wash tank), and sprayed rinse solution drains from the wash cabinet back to the rinse tank through the air-operated drain diverter located within the wash cabinet. Floor pads on the underside of the rinse tank allow the unit to be picked up and moved via fork lift during installation. The tank includes removable stainless steel covers for tank access along with stainless steel brackets for mounting the top-pull-out rinse pump.

The rinse pump is a Gusher brand vertical, end-suction, centrifugal unit with cast iron housing and impeller, complete with a 2 HP, 3450 RPM motor. The pump is capable of delivering solution to the spray system at a rate of up to 40 GPM @ 28 PSI.

The rinse spray system is similar to the wash spray system, with one set of stainless steel header pipes arranged to provide top, bottom and side spray within the cabinet.

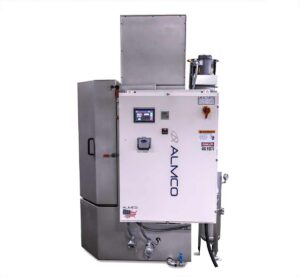

RCW Electrical

Electrical Controls

Electrical controls are housed in a Hoffman (or Saginaw) brand NEMA 12 enclosure mounted on the side of the wash cabinet (as room permits, otherwise enclosure is free standing). Components within the enclosure are finger-safe and are Allen-Bradley brand unless noted otherwise. Components include a main disconnect switch, Littelfuse fuse holders and branch circuit fuses, terminal strips, a
G.E. (or equal) transformer to provide a 115 Volt control circuit, master control relay, Minarik 90 Volt DC motor controller (for the turntable drive), heating system contactor, and an IEC-style motor circuit protector with thermal overload and short circuit protection.

An equipment power on pushbutton, an emergency stop pushbutton are provided on the front door of the main electrical enclosure, along with the reservoir heating system’s Watlow digital temperature controller. Machine start/stop controls are provided on the side of the enclosure facing the front of the machine. Buttons and lights are Allen-Bradley brand.

The machine is wired per NEC (NFPA 70) and NFPA 79 electrical standards, ready for connection to your electrical service.

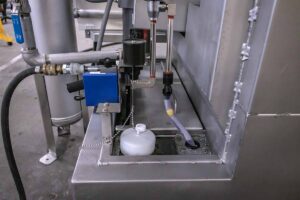

Electric Heat

Electric Heat for Wash/Rinse Tank. Consists of (2) Indeeco brand 12 kW screw-plug immersion heaters capable of heating tank contents from 70 to 140 degrees (F) in one hour. The heaters have stainless steel elements and fittings, with cast iron NEMA 4 conduit boxes. One heater is located in the wash compartment and one heater is located in the rinse compartment. The Rinse heater is made from Incoloy to be used with straight water.

A Watlow brand temperature controller mounted on the door of the main electrical enclosure provides digital read-out and control of solution temperature in the wash tank. A stainless steel type-J thermocouple located in the tank provides an input signal to the controller, which switches the heaters on and off to maintain setpoint temperature.

Insulation for Heated Wash Tanks. Consists of a 2″ thickness of fiberglass batting on all exterior tank walls, held in place by a 14 gauge stainless steel jacket. Also includes stainless steel covers for open areas of tank.

Bag Filtration

Bag Filtration System for Wash Station. Consists of a floor-mounted size 4 bag filter housing and a filter bag rated at 50 microns (other ratings are available). The unit is piped between the spray pump and the spray nozzles in the wash station. The housing includes an internal basket for holding one filter bag, and the hinged cover is held in place with three eyebolts. Inlet and outlet pressure gauges are also provided.

Vibratory Finishing Equipment

OPTIONS & UPGRADES

Vapor and Mist Collection

ALMCO will recommend the right system to collect the vapor or mist generated by the cleaning process to ensure the humidity level of your facility is not affected by running the washing system.

PLC Touch Screen

Add processing control and ease of cycle time adjustments with this touch screen human machine interface. Gain access to machine diagnostics and parameter controls.

Preheating Timer

Have your machine solution tank heated up before the shift starts with a seven day programmable timing unit.

Oil Skimming and Wastewater Treatment

For applications involving cleaning oil-based residue off parts, ALMCO offers an oil skimming solution.

FREQUENTLY ASKED QUESTIONS

How do I get the machine to my facility?

ALMCO can help arrange a truck shipment to get the machine to your facility. You may need to work with a local machine rigging company to place the machine properly in your facility.

How do I get the machine installed and set up to run at my facility?

After the purchase of a machine, ALMCO will provide installation, unloading and set-up instructions. You can also pay to have an ALMCO representative on site during the installation to ensure the machine is running properly and your operators are trained on using the system.

Do I need to purchase special cleaning chemical compounds to run in the system?

ALMCO carries a line of chemicals including cleaning compounds and rust inhibitors that are sold separately. It is highly recommended that you send in sample parts for testing prior to issuing a purchase order to ensure we find the right cleaning solution for your parts depending on the material and the dirtiness of the parts.
