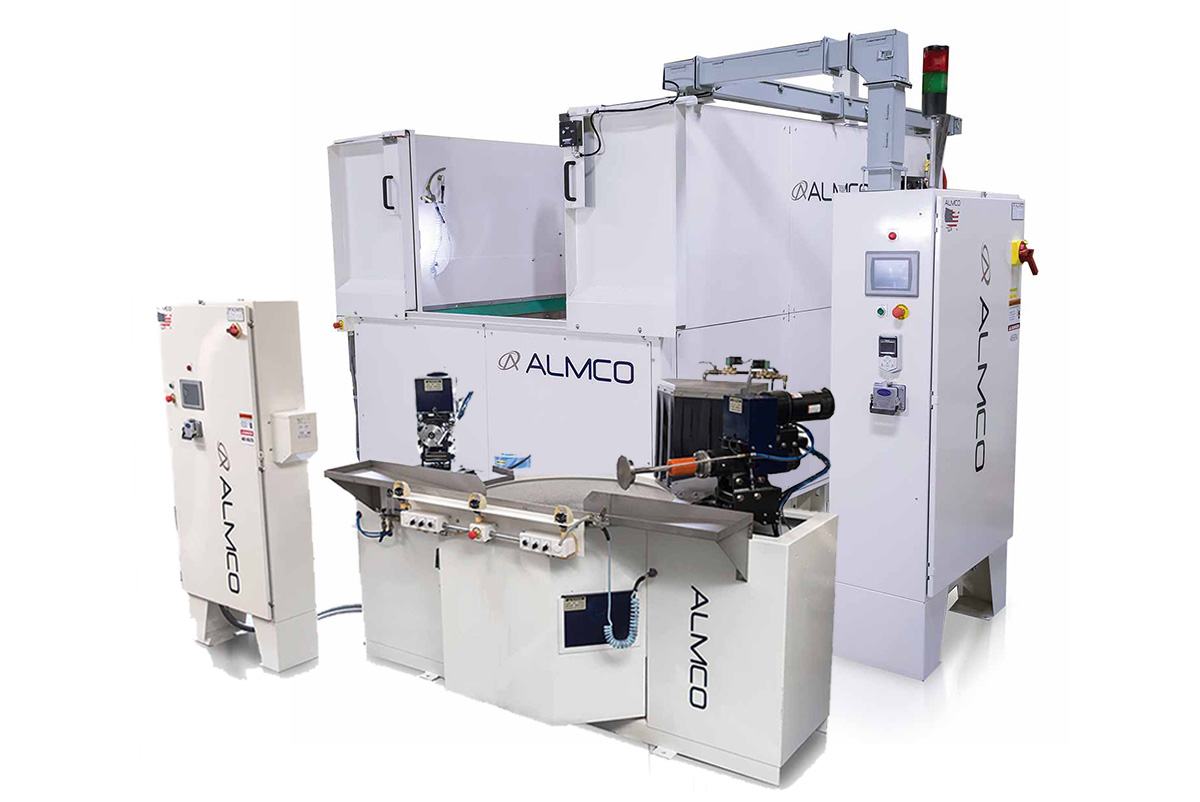

Sutton® & Spindle Finishing Systems

Precision Deburring and Surface Finishing for Complex, High-Value Components

When part quality, repeatability, and feature accessibility are critical, conventional batch finishing methods often reach their limits. ALMCO’s Sutton® & Spindle Finishing Systems provide a highly controlled, fixture-based finishing process for components ranging from precision-machined medical and aerospace parts to large turbine disks, blisks, and impellers.

Unlike vibratory bowls, tubs, and centrifugal systems where parts move freely through media, Sutton® and spindle finishing machines securely fixture each workpiece throughout the process. This controlled approach allows media and compound to be directed precisely where needed, producing consistent deburring, edge blending, surface refinement, and polishing results while reducing or eliminating labor-intensive hand finishing operations.

Whether you’re processing small precision components or large aerospace hardware, ALMCO offers a spindle-based finishing solution engineered to match the size, geometry, and production requirements of your application.

Get Quote

Download Brochure

MODEL COMPARISON

COMPARE AVAILABLE MODELS

All Sutton-Spindle Series

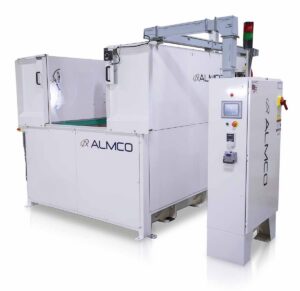

CFT-3000 Centri-Flo Tornado Sutton Machine

CFT-3000 Sutton

High-speed spindle finishing system for precision deburring, blending, and surface refinement.

Up to 900 RPM spindle speed
Handles parts up to 40" diameter
Excellent for aggressive finishing applications

CFT-4000 Sutton

Heavy-duty spindle finisher designed for thicker, heavier, and high-value rotational components.

Processes parts up to 18" thick
75 HP drive system
Ideal for turbine disks and aerospace hardware

CFCA-1100 Sutton

Oscillating spindle finishing system designed to improve media access to difficult features and valleys.

Unique 79-degree oscillating spindle motion
Enhanced access to recessed geometries
Excellent for complex precision components

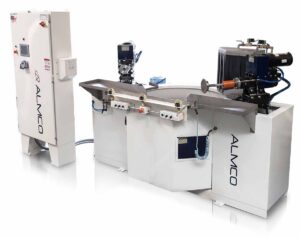

2SF-48CRA Spindle Machine

High-speed dual-spindle finishing system that delivers consistent deburring, edge radiusing, polishing, and surface refinement for precision-machined components.

Dual-spindle design increases throughput
Rotary Actuator provides multi-angle finishing access
Robotic loading and automation ready

Exceptional Process Control- Each component remains securely fixtured throughout the finishing cycle, ensuring repeatable results and minimizing part-to-part variation.
Reach Difficult Features- Media and compound are actively driven into pockets, blade roots, cross-holes, recessed surfaces, internal passages, and other challenging geometries.
Reduce Hand Finishing- Replace labor-intensive manual deburring, blending, and polishing with an automated process that produces more consistent results.
Built for High-Value Components- Ideal for aerospace, medical, defense, automotive, and precision manufacturing applications where quality and consistency are critical.
Automation Ready- Many systems can be integrated into robotic cells and automated manufacturing environments.

COMMON APPLICATIONS

Aerospace & Defense- Turbine components, engine hardware, flight-critical parts, and precision-machined aerospace components.
Medical Manufacturing- Implants, surgical instruments, and precision medical devices.
Automotive & Powertrain- Transmission components, gears, shafts, and driveline hardware.
Energy & Power Generation- Turbines, compressors, impellers, and rotating equipment.
General Precision Manufacturing- Hydraulic components, valves, pump parts, and other complex machined products.

Get Quote

Download Brochure

Vibratory Finishing Equipment

PRWB Conveyor Washer Model Comparison

Specification	PWRB-1248E	PWRB-1848E	PWRB-2448E
Overall Machine Dimensions (Approximate)	12′-6″ Long x 68″ Wide x 52″ High	12′-6″ Long x 68″ Wide x 52″ High	12′-6″ Long x 68″ Wide x 52″ High
Process Stages	Wash: 48″ Drain Area: 18″ Blow-Off: 48″ Unload Station: 18″	Wash: 48″ Drain Area: 18″ Blow-Off: 48″ Unload Station: 18″	Wash: 48″ Drain Area: 18″ Blow-Off: 48″ Unload Station: 18″
Conveyor Belt Height	36″	36″	36″
Work Opening Size	18″ Wide x 9″ High	18″ Wide x 9″ High	18″ Wide x 9″ High
Conveyor Motor	15 HP TEFC, 1750 RPM	15 HP TEFC, 1750 RPM	15 HP TEFC, 1750 RPM
Solution Tank Capacity	290 gallons	290 gallons	290 gallons
Wash Pump	Gusher brand vertical end-suction centrifugal unit	Gusher brand vertical end-suction centrifugal unit	Gusher brand vertical end-suction centrifugal unit
Pump Motor	3 HP, 3450 RPM	3 HP, 3450 RPM	5 HP, 3450 RPM
Flowrate	72 GPM @ 40 PSI	72 GPM @ 40 PSI	72 GPM @ 40 PSI
Power Requirement	460v (Others Available) 3 Phase, 60 Cycle	460v (Others Available) 3 Phase, 60 Cycle	460v (Others Available) 3 Phase, 60 Cycle
Drive Unit	AC Variable Frequency	AC Variable Frequency	AC Variable Frequency
Blow-Off Unit	10 HP Gast brand regenerative blower	10 HP Gast brand regenerative blower	10 HP Gast brand regenerative blower
Blow-Off Rate	250 CFM @ 100″ WC static pressure	250 CFM @ 100″ WC static pressure	250 CFM @ 100″ WC static pressure
Operator Controls	110 volts supplied by a transformer within the control box	110 volts supplied by a transformer within the control box	110 volts supplied by a transformer within the control box
Electrical Controls	Conformance to N.E.C. electrical specifications	Conformance to N.E.C. electrical specifications	Conformance to N.E.C. electrical specifications
Electrical Enclosure	NEMA type 12 panel enclosure mounted on the machine	NEMA type 12 panel enclosure mounted on the machine	NEMA type 12 panel enclosure mounted on the machine
Paint	Two coats of Diamond Vogel brand industrial enamel in Lunar White with Midnight Blue accent	Two coats of Diamond Vogel brand industrial enamel in Lunar White with Midnight Blue accent	Two coats of Diamond Vogel brand industrial enamel in Lunar White with Midnight Blue accent

SYSTEM DETAILS

Conveyor Frame

CONVEYOR FRAME

The conveyor system consists of one conveyor frame sections, one continuous conveyor belt and a drive unit.
The conveyor frame is mounted on top of the wash tank, and this frame/tank assembly provides the basic structure of the Load, Wash, Blow-Off and Unload Stations. The frame measures 32″ wide (inside) by 150″ long and is fabricated from 10-gauge 304 stainless steel sheets and structural reinforcing members using all-welded construction to provide a water-tight, first-rate appearance.

Conveyor Belt

The conveyor belt is a Keystone brand 18″ wide flat-wire model with 1″ x 1″ openings and welded “button head” edges. The belt is fabricated from 304 stainless steel.

Flange-mounted bearings located on each outboard end of the conveyor frame support the conveyor’s 1-1/2″ diameter stainless steel drive and driven shafts. Each shaft holds sprockets that are specifically designed to fit the openings of the conveyor belt, providing positive belt drive and excellent belt tracking.

Conveyor Drive

The conveyor is driven by a 1/4 HP 90 Volt DC gearmotor mounted beneath the discharge end of the machine. The gearmotor transfers power through roller chain and sprockets to a friction-type torque limiter mounted on the conveyor’s drive shaft.

Solution Tank

The solution tank of the Washer has a capacity of 290 gallons and is fabricated from 10-gauge 304 stainless steel sheets and structural reinforcing members using all-welded construction. The tank is located beneath the machine’s conveyor frame section, and along with the conveyor frame forms the main structure of the Washer. Floor pads on the underside of the tank allow the entire section of the machine to be picked up and moved via forklift during installation. In addition, the tank is approximately 16″ wider than the conveyor frame along one side of the machine, providing open tank area for mounting the top-pull-out wash pump. A tank drain fitting and a 12″ diameter stainless steel clean-out door are also provided.

Wash Pump

The wash pump is a Gusher brand vertical end-suction centrifugal unit with cast iron housing, and impeller, complete with a 3 HP, 3450 RPM motor. The pump delivers solution to the spray system which is sized to flow up to 72 GPM @ 40 PSI. A pressure gauge and ball valve are provided to monitor and control pump output.

PWRB Electrical

Electrical Controls

Electrical controls are housed in a free-standing NEMA 12 enclosure. All components within the enclosure are finger-safe and are Allen-Bradley brand unless noted otherwise. Components include a main disconnect switch, power distribution block, fuse holders and branch circuit fuses, Taylor wireways, terminal strips, a power supply to provide a 24 Volt DC control circuit, master control relay, a G.E. (or equal) transformer to provide 115 Volt single phase power (as needed), a PowerFlex variable frequency drive, and motor circuit protectors with thermal overloads and short circuit protection.

Equipment Power On and Emergency Stop pushbuttons are located on the front and/or side of the machine electrical enclosure. The optional touch screen includes all machine controls and is used to display system messages and to enter values for processing parameters.

All electrical components are UL listed and the machine is wired in accordance with NEC (NFPA 70) and NFPA 79 standards, ready for connection to your electrical service.

Spray System

The Washer’s spray system consists of three stainless steel header pipe assemblies connected to a distribution manifold mounted on the inside of the conveyor frame. Each header assembly is made up of four 1″ pipes fit together with the manifold to encompass the conveyor belt providing top and bottom spray.

The individual 1″ pipes that make up the spray system have tapped holes to accept 1/4″ NPT stainless steel nipples and elbows for spray nozzle mounting, and standard nozzles are Spraying Systems brand “Flat-V” type made of stainless steel.

Shroud Hoods

Shroud and Hoods

The wash spray system is shrouded by a 48″ long hinged hood that bolts to the open top of the conveyor frame. The open ends of the hood include neoprene rubber curtains that allow parts to pass through on the conveyor while effectively containing spray. Fabricated from 14-gauge 304 stainless steel, the spring-loaded hood is designed to swing open for easy access to the spray system.

Blow-Off

Blow-Off System

Designed to remove standing moisture from the product before exit from the machine, the Blow-Off consists of a hood weldment, a regenerative blower, air nozzles, piping, and controls.

The 48″ long Blow-Off hood is fabricated from 14-gauge 304 stainless steel and includes neoprene rubber curtains mounted on each end. The hood mounts to the top of the machine’s conveyor frame, just before the Unload Station.

Air is blown onto the parts through multiple 3/16″ diameter holes drilled into two stainless steel header pipes located above the conveyor belt and one stainless steel header pipes located below the conveyor belt. Air jetting from these holes acts to strip standing liquid from the parts.
The Blow-Off is powered by a 10 HP Gast brand regenerative blower rated to deliver air at 250 CFM @ 100″ WC static pressure. The blower mounts to the underside of the conveyor frame and is connected to the air nozzles by stainless steel piping. Bronze ball valves in the blower outlet piping allow airflow adjustments to the header pipes, and the blower includes inlet air filters and built-in mufflers for noise reduction. For additional noise reduction the blower mounting area under the conveyor frame is enclosed within a 14-gauge stainless steel shroud lined with 3″ thick sound-absorbing foam insulation.

Vibratory Finishing Equipment

OPTIONS & UPGRADES

Vapor and Mist Collection

ALMCO will recommend the right system to collect the vapor or mist generated by the cleaning process to ensure the humidity level of your facility is not affected by running the washing system.

Product Sensors

Photo eyes monitor the load and unload stations for parts and will deactivate the machine if parts stop flowing or to prevent parts falling from the conveyor.

Heated Tanks

Heat your wash tanks up to 140 degrees (F) with an electric tank heater. ALMCO also has optional insulation to cut down on energy costs.

Oil Skimming and Wastewater Treatment

For applications involving cleaning oil-based residue off parts, ALMCO offers an oil skimming solution.

FREQUENTLY ASKED QUESTIONS

How do I get the machine to my facility?

ALMCO can help arrange a truck shipment to get the machine to your facility. You may need to work with a local machine rigging company to place the machine properly in your facility.

How do I get the machine installed and set up to run at my facility?

After the purchase of a machine, ALMCO will provide installation, unloading and set-up instructions. You can also pay to have an ALMCO representative on site during the installation to ensure the machine is running properly and your operators are trained on using the system.

Do I need to purchase special cleaning chemical compounds to run in the system?

ALMCO carries a line of chemicals including cleaning compounds and rust inhibitors that are sold separately. It is highly recommended that you send in sample parts for testing prior to issuing a purchase order to ensure we find the right cleaning solution for your parts depending on the material and the dirtiness of the parts.
