Part Washing Equipment

Immersion-Ultrasonic Parts Washers

Thorough Cleaning for Complex Parts and Difficult-to-Reach Features

ALMCO Immersion Parts Washers provide a highly effective cleaning solution for components that benefit from soaking, agitation, or ultrasonic cleaning. Unlike spray-based systems, immersion washers completely submerge parts in a cleaning solution, allowing fluid to reach internal passages, blind holes, recesses, and complex geometries that can be difficult to clean through conventional washing methods.

Designed for aqueous cleaning applications, ALMCO immersion washers are ideal for removing oils, coolants, chips, particulate, and manufacturing residue from machined, cast, fabricated, and assembled components. Available with agitation and ultrasonic cleaning technology, these systems deliver exceptional cleaning performance while supporting both batch processing and automated manufacturing environments.

Get Quote

Download Brochure

MODEL COMPARISON

COMPARE AVAILABLE MODELS

All Immersion-Ultrasonic Washers

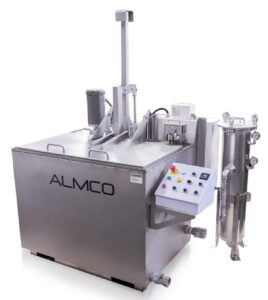

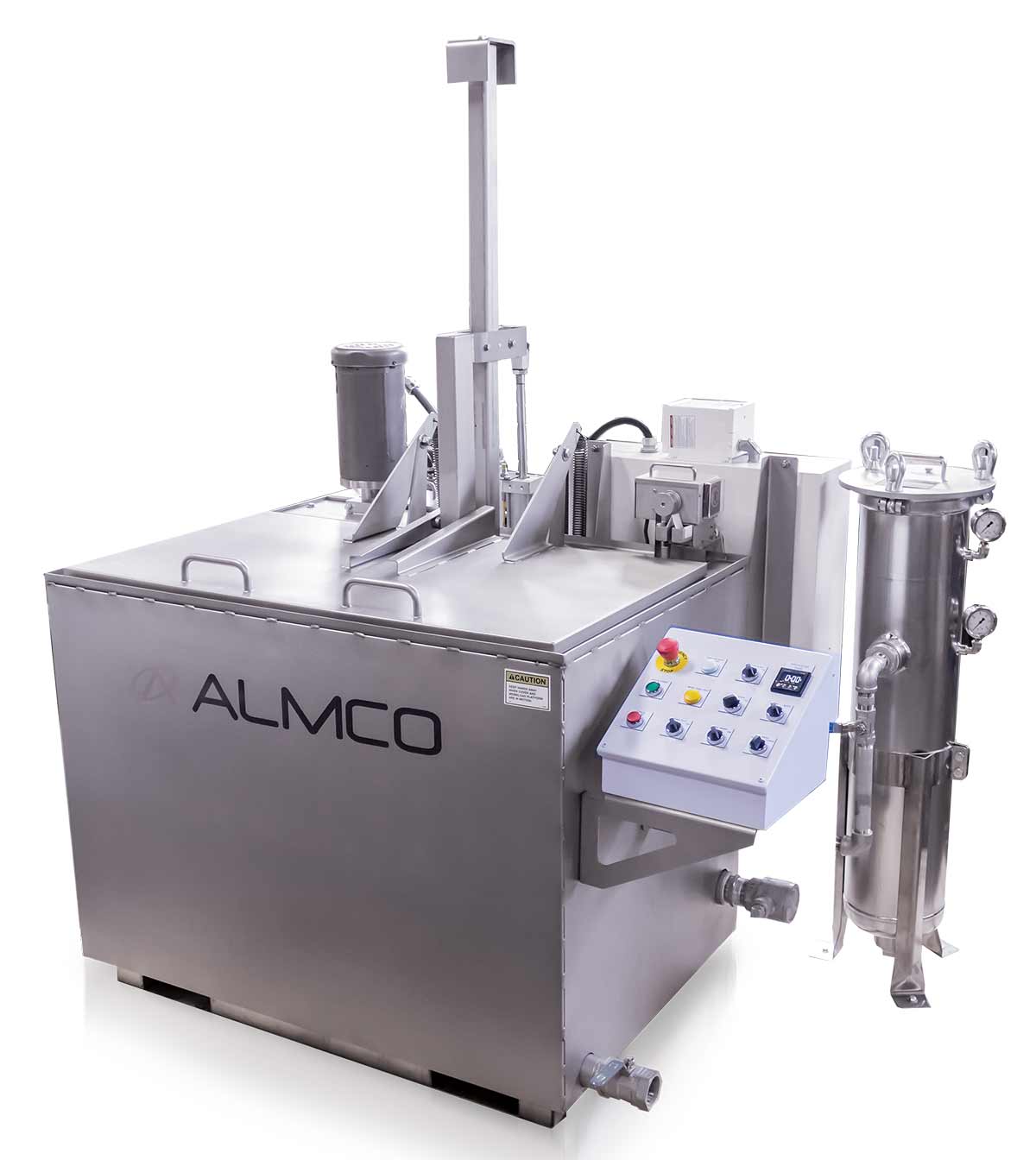

PW-125 Immersion Parts Washer

Automated immersion cleaning system engineered for repeatable, hands-free cleaning of precision-manufactured components in demanding production environments.

Automatic lowering, cleaning, and lifting cycle
Heavy-duty stainless steel construction throughout
Ideal for aerospace, medical, hydraulic, and precision-machined parts applications

Complete Part Submersion- Parts are fully immersed in cleaning solution, allowing contaminants to be removed from surfaces, cavities, and internal features.
Ideal for Complex Geometries- Excellent for components with blind holes, internal passages, pockets, and difficult-to-reach areas.
Agitation and Ultrasonic Cleaning Available- Mechanical agitation and ultrasonic cavitation work together to improve cleaning effectiveness and reduce manual labor.
Flexible Batch Processing- Suitable for cleaning individual components, baskets of parts, fixtures, and assemblies.
Automation Ready- Can be integrated into production systems with automated lifting, transfers, multiple stages, and process controls.

COMMON APPLICATIONS

Precision Machined Components- Remove coolant residue, chips, oils, and particulate from complex machined parts.
Aerospace Components- Clean high-value components requiring repeatable cleanliness standards.
Medical Devices- Prepare instruments, implants, and precision components for downstream manufacturing operations.
Hydraulic and Pneumatic Components- Clean manifolds, valve bodies, housings, and assemblies with intricate internal passages.
Castings and Assemblies- Remove manufacturing residue prior to coating, inspection, or assembly.

Get Quote

Download Brochure

TECHNICAL SPECIFICATIONS

Specification	Value
Length, Overall	46″ (approx., less options)
Width, Overall	40″ (approx., front to back, less options)
Height, Overall	60″ (approx. top of mast)
Load Capacity	125 lbs.
Liquid Capacity	60 Gallons (approx.)
Carrier Load Height	32″ (approx.)
Carrier Length x Width	31-1/2″ x 16″
Fluid Height Above Carrier	13.5″ min., 16.5″ max.
Tank Heat	6 kW
Drive Size	1 HP
Tank Insulation	1″ thick, with stainless steel sheet metal jacket
Bag Filter System	Model 4×12 Stainless Steel housing, polypropylene circulation pump
Cycle Timer	Digital
Oil Skimmer	Belt Type
Ultrasonic Power Output	3000 Watts total
Ultrasonic Generators	2 @ 1500 Watts
Ultrasonic Transducers	(36) piezoelectric
Electrical Enclosure	Machine-mounted NEMA 12 enclosure with main disconnect switch, wired to NFPA 79 electrical standards
Incoming Electrical Power	480 Volts / 3 Phase
Control Circuit Voltage	120 Volts / 1 Phase

SYSTEM DETAILS

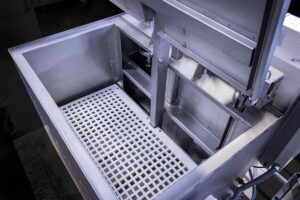

Wash Basin

How It Works

The machine is built to heavy industrial standards with a 12-gauge stainless steel tank bottom and 14-gauge stainless steel tank walls.

Ultrasonic cleaning is a result of high frequency sound waves introduced into a cleaning liquid by means of a series of “transducers” mounted to the cleaning tank. The sound travels throughout the tank and creates waves of compression and expansion in the liquid. In the compression wave, the molecules of the cleaning liquid are tightly compressed together. Conversely, in the expansion wave, the molecules are rapidly pulled apart. The expansion is so dramatic that the molecules are ripped apart, creating microscopic bubbles. The bubbles are not seen by the naked eye since they are so small and exist for only a split second of time. The bubbles contain a partial vacuum while they exist. As the pressure around the bubbles becomes greater, the fluid around the bubble rushes in, collapsing the bubble very rapidly. This violent collapse, combined with the liquid jets velocity, provides a very intense cleaning/scrubbing action in a minute area. This scrubbing action exists throughout the cleaning bath. When utilizing detergents designed for a specific application, a synergistic cleaning action is produced.

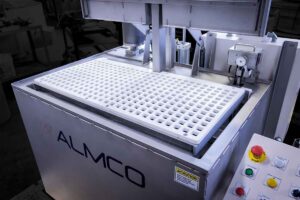

Pneumatic Lift

Pushbutton control activates the unit’s Pneumatic System, which automatically lowers the workload into the immersion chamber while simultaneously closing the tank cover before agitation begins. Agitation stops when the cleaning cycle is complete, and the cover opens automatically as the workload rises up and out of the solution, flush with the top of the cabinet for draining and product removal.

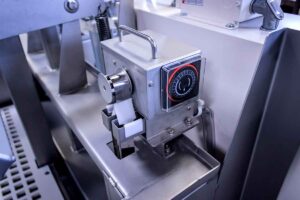

Wash Metering

Agitation System

Ultrasonic agitation / immersion washer uses a heavy-duty gearmotor drive to move the product to be cleaned through 60 four-inch vertical strokes per minute. Ultrasonic energy combined with the surging action created by the agitation cleans the product inside and out.

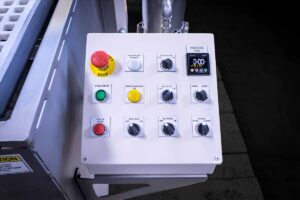

PW Control Panel

Electrical Controls

Electrical controls are housed in a Hoffman (or Saginaw) brand NEMA 12 enclosure mounted on the side of the wash cabinet (as room permits, otherwise enclosure is free standing). Components within the enclosure are finger-safe and are Allen-Bradley brand unless noted otherwise. Components include a main disconnect switch, Littelfuse fuse holders and branch circuit fuses, terminal strips, a
G.E. (or equal) transformer to provide a 115 Volt control circuit, master control relay, Minarik 90 Volt DC motor controller (for the turntable drive), heating system contactor, and an IEC-style motor circuit protector with thermal overload and short circuit protection.

An equipment power on pushbutton, an emergency stop pushbutton are provided on the front door of the main electrical enclosure, along with the reservoir heating system’s Watlow digital temperature controller. Machine start/stop controls are provided on the side of the enclosure facing the front of the machine. Buttons and lights are Allen-Bradley brand.

The machine is wired per NEC (NFPA 70) and NFPA 79 electrical standards, ready for connection to your electrical service.

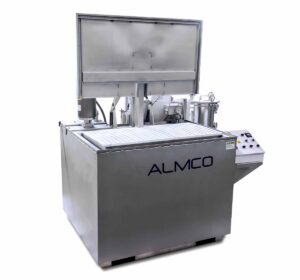

Auto Lid

Automatic Lid

Pushbutton control activates the unit’s Pneumatic System, which automatically lowers the workload into the immersion chamber while simultaneously closing the tank cover before agitation begins.

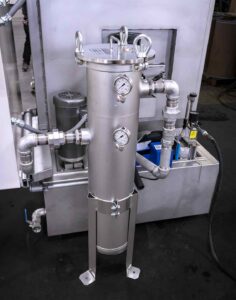

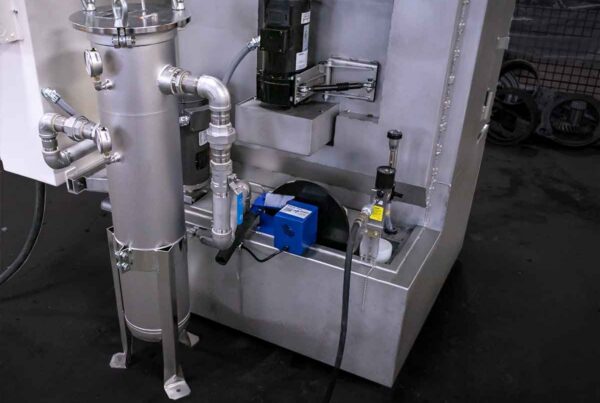

Bag Filtration

Consists of a floor-mounted bag filter housing and a filter bag rated at 50 microns. The 4″ diameter by 12″ tall stainless-steel housing is over-sized for less frequent filter change-outs, and the unit is piped between the spray pump and the spray nozzles in the Washer. The housing includes a stainless-steel internal basket for holding one filter bag, and the hinged stainless-steel cover is held in place with three eyebolts. Inlet and outlet pressure gauges are also provided.

Vibratory Finishing Equipment

OPTIONS & UPGRADES

Vapor and Mist Collection

ALMCO will recommend the right system to collect the vapor or mist generated by the cleaning process to ensure the humidity level of your facility is not affected by running the washing system.

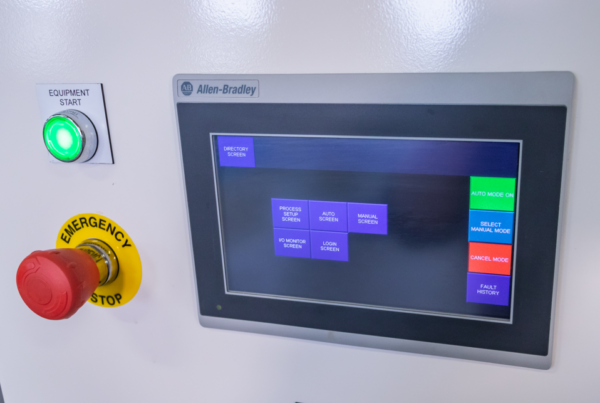

PLC Touch Screen

Add processing control and ease of cycle time adjustments with this touch screen human machine interface. Gain access to machine diagnostics and parameter controls.

Preheating Timer

Have your machine solution tank heated up before the shift starts with a seven day programmable timing unit.

Oil Skimming and Wastewater Treatment

For applications involving cleaning oil-based residue off parts, ALMCO offers an oil skimming solution.

FREQUENTLY ASKED QUESTIONS

How do I get the machine to my facility?

ALMCO can help arrange a truck shipment to get the machine to your facility. You may need to work with a local machine rigging company to place the machine properly in your facility.

How do I get the machine installed and set up to run at my facility?

After the purchase of a machine, ALMCO will provide installation, unloading and set-up instructions. You can also pay to have an ALMCO representative on site during the installation to ensure the machine is running properly and your operators are trained on using the system.

Do I need to purchase special cleaning chemical compounds to run in the system?

ALMCO carries a line of chemicals including cleaning compounds and rust inhibitors that are sold separately. It is highly recommended that you send in sample parts for testing prior to issuing a purchase order to ensure we find the right cleaning solution for your parts depending on the material and the dirtiness of the parts.
