Vibratory Finishing Equipment

CONTINUOUS THRU-FEED VIBRATORY FINISHING SYSTEMS

ALMCO Continuous Thru-Feed Vibratory finishing systems are designed for high-volume applications where a constant flow of parts need to get tumble finished. ALMCO offers several standard sized systems with the ability to integrate with our other inline finishing options including washing and drying units.

Our standard line of Thru-Feed tubs offer a shorter lead team than custom options available on the market. Our ALMCO technical support specialists can work with you to find the best options and setup for your inline production.

With flexible water circulation and compound dosing options, these systems are easily integrated into a factory layout.

Get Quote

Download Brochure

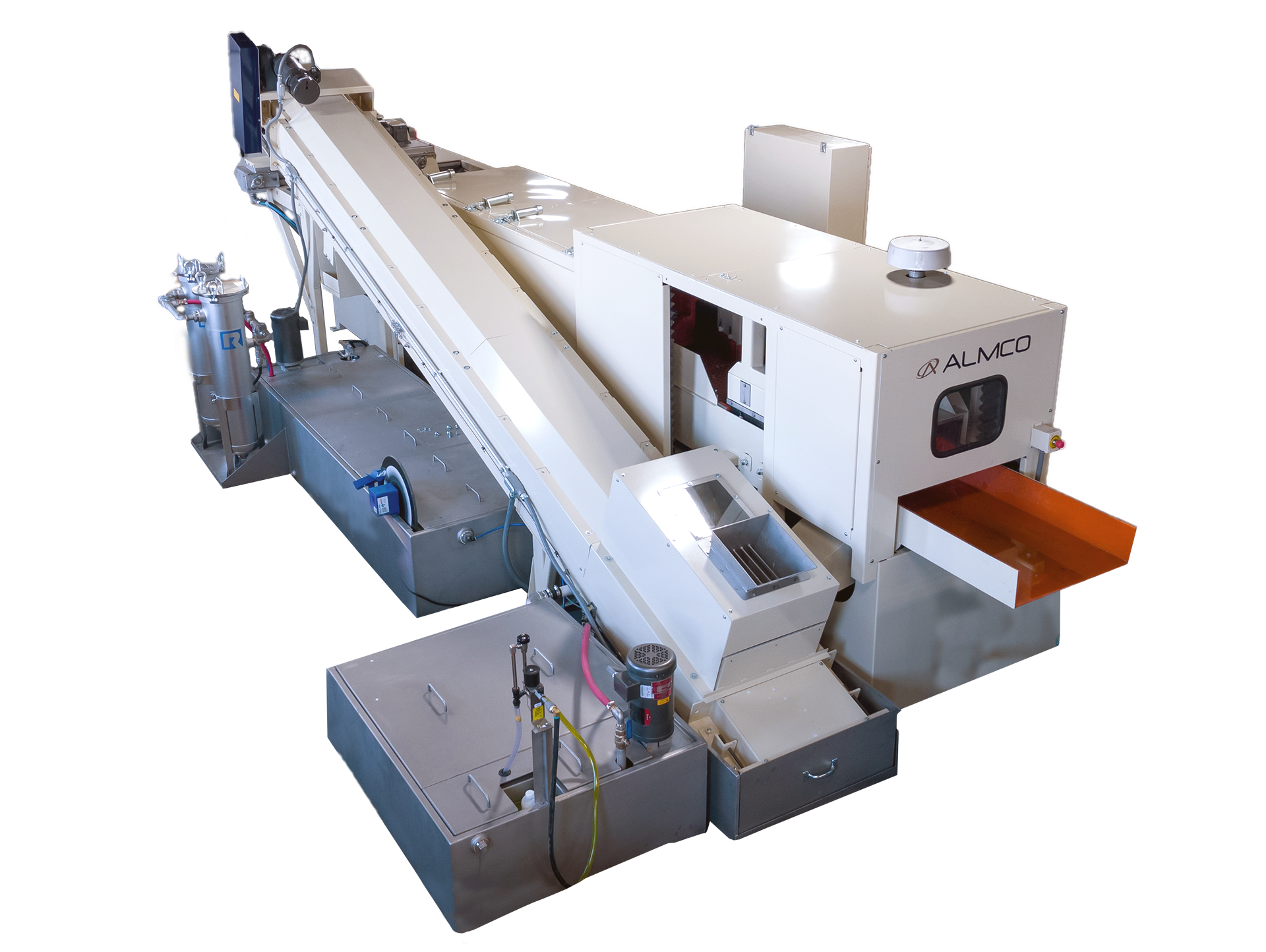

The Backside of a Thru-Feed Tub system

MODEL COMPARISON

COMPARE AVAILABLE MODELS

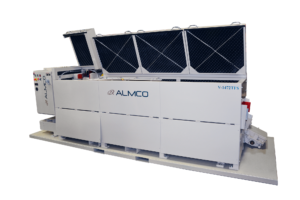

A Thru-Feed Vibratory Tub System
V-16120 TF – Thru-Feed Vibratory Tub

V-16120 TF – Thru-Feed Vibratory Tub

Compact thru-feed vibratory finishing system designed for continuous deburring, edge radiusing, and surface refinement of high-volume production parts.

  • 24 ft³ working capacity with 3-5 minute process times
  • Handles parts up to 12" diameter
  • Continuous-feed operation maximizes production efficiency
Read More

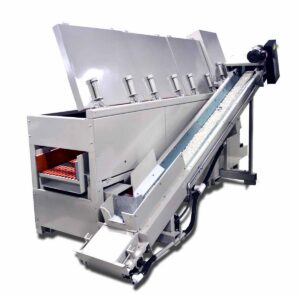

The back Side of an almco thru feed vibratory tub.
V-19158 TF – Thru-Feed Vibratory Tub

V-19158 TF – Thru-Feed Vibratory Tub

Versatile mid-size thru-feed finishing system that balances throughput, dwell time, and processing capacity for demanding manufacturing applications.

  • 42 ft³ working capacity for increased production rates
  • Accommodates parts up to 15" diameter
  • 4-8 minute process time for enhanced finishing performance
Read More

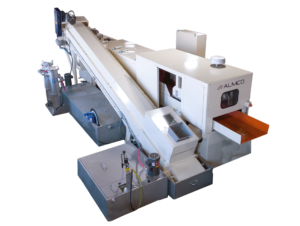

The Backside of a Thru-Feed Tub system
V-23198 TF – Thru-Feed Vibratory Tub

V-23198 TF – Thru-Feed Vibratory Tub

Maximum-capacity thru-feed vibratory finisher engineered for the highest production volumes and the largest parts within the TF Series.

  • 68 ft³ working capacity and up to 10-minute process times
  • Handles parts up to 19" diameter
  • Designed for high-throughput automated finishing operations
Read More

Why Choose the OR Series?

  • Continuous Processing- Parts enter one end of the machine and exit finished at the opposite end, supporting uninterrupted production.
  • High Throughput- Designed for production environments where large quantities of parts must be processed efficiently.
  • Consistent Finishing Results- Controlled feed rates and processing times help deliver repeatable part-to-part finishing quality.
  • Automation Friendly- Easily integrated into upstream and downstream manufacturing processes.

COMMON APPLICATIONS

  • Deburring– Remove sharp edges and burrs from stamped, machined, and laser-cut components.
  • Edge Radiusing– Create uniform edge conditions prior to coating, assembly, or shipment.
  • Surface Refinement– Improve appearance and consistency across large production runs.
  • Cleaning– Remove manufacturing residue and light contamination.

Get Quote

Download Brochure

Thru-Feed Model Comparison

Specification V-16120 TF V-19158 TF V-23198 TF
Total Capacity 27 Cubic Feet 48 Cubic Feet 80 Cubic Feet
Working Capacity 24 Cubic Feet 42 Cubic Feet 68 Cubic Feet
Floor Space 23′ Long × 5.5′ Wide × 9.5′ High 36′ Long × 5.5′ Wide × 9.5′ High 40′ Long × 5.5′ Wide × 9.5′ High
Internal Tub Dimensions 120″ Long × 16″ Wide × 24″ Deep 158″ Long × 19″ Wide × 28″ Deep 198″ Long × 23″ Wide × 30″ Deep
Estimated Process Time 3-5 Minutes 4-8 Minutes 5-10 Minutes
Power Consumption 50 Amps 70 Amps 90 Amps
Ceramic Media Required 2,500 lbs. 4,500 lbs. 7,200 lbs.
Steel Media Required 8,100 lbs. 14,400 lbs. 24,000 lbs.
Plastic Media Required 1,800 lbs. 3,120 lbs. 5,200 lbs.
Maximum Part Size 12″ Diameter 15″ Diameter 19″ Diameter

OVERVIEW

THRU-FEED SYSTEM OVERVIEW

Automated vibratory solutions built for non-stop finishing with consistent quality and performance.

KEY ADVANTAGES

  • Nonstop finishing, cleaning, and deburring
  • Nonstop finishing, cleaning, and deburring
  • Nonstop finishing, cleaning, and deburring
  • Nonstop finishing, cleaning, and deburring

COMMON APPLICATIONS

  • Nonstop finishing, cleaning, and deburring
  • Nonstop finishing, cleaning, and deburring
  • Nonstop finishing, cleaning, and deburring
  • Nonstop finishing, cleaning, and deburring

EQUIPMENT VIDEO

SYSTEM DETAILS

Heavy Duty Framework

ALMCO thru-feed systems are built on a heavy-duty welded steel framework engineered for extreme durability and long term reliability.

The structural frame is designed to handle high vibratory forced while maintaining precise tub alignment for consistent, even results and extended equipment life.

Precision fabrication and industrial-grade materials ensure rigidity, minimal maintenance, and a service life proven in the field for 50+ years.

Heavy Duty Framework

ALMCO thru-feed systems are built on a heavy-duty welded steel framework engineered for extreme durability and long term reliability.

The structural frame is designed to handle high vibratory forced while maintaining precise tub alignment for consistent, even results and extended equipment life.

Precision fabrication and industrial-grade materials ensure rigidity, minimal maintenance, and a service life proven in the field for 50+ years.

Heavy Duty Framework

ALMCO thru-feed systems are built on a heavy-duty welded steel framework engineered for extreme durability and long term reliability.

The structural frame is designed to handle high vibratory forced while maintaining precise tub alignment for consistent, even results and extended equipment life.

Precision fabrication and industrial-grade materials ensure rigidity, minimal maintenance, and a service life proven in the field for 50+ years.

Heavy Duty Framework

ALMCO thru-feed systems are built on a heavy-duty welded steel framework engineered for extreme durability and long term reliability.

The structural frame is designed to handle high vibratory forced while maintaining precise tub alignment for consistent, even results and extended equipment life.

Precision fabrication and industrial-grade materials ensure rigidity, minimal maintenance, and a service life proven in the field for 50+ years.

I am text block. Click edit button to change this text.

I am text block. Click edit button to change this text.
